Arc A770

Technical Specifications

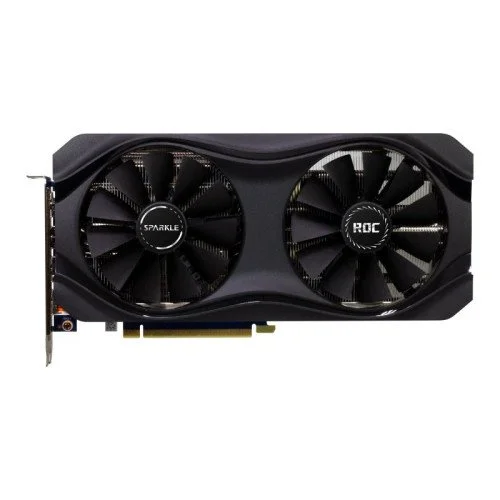

• Summary: Sparkle Technology Intel Arc A770 ROC OC Edition. Graphics processor family: Intel, Graphics processor: Arc A770. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.sparkle.com.tw/en/A770-ROC
• Name: VGA PCIE16 ARC A770 16GB GDDR6/SA770R-16GOC SPARKLE
• Category Code: VGP
• Graphics processor family: Intel
• Graphics processor: Arc A770
• Processor boost clock speed: 2300
• Maximum resolution: 7680 x 4320
• Ray accelerators: 32
• Discrete graphics card memory: 16
• Graphics card memory type: GDDR6
• Memory bus: 256
• Data transfer rate: 17.5
• Memory bandwidth (max): 560
• Interface type: PCI Express 4.0
• HDMI ports quantity: 1
• HDMI version: 2.0b
• DisplayPort version: 2.0
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• OpenCL version: 3.0
• Intel Xe Matrix Extensions (Intel XMX) Engines: 512
• Xe-cores: 32
• Video formats supported: AV1/VP9
• Cooling type: Active
• Number of fans: 2
• Number of slots: 2.5
• Product colour: Black
• Minimum system power supply: 650
• Power consumption (typical): 225
• Windows operating systems supported: Windows 10/Windows 11
• Linux operating systems supported: Ubuntu 22.04
• Weight: 360
• Length: 281
• Depth: 51
• Height: 131
• Model: SA770R-16GOC
• Unit Calculated Volume: 0.005148
• Product Net Weight: 0.88
• Unit Calculated Weight: 1.13
