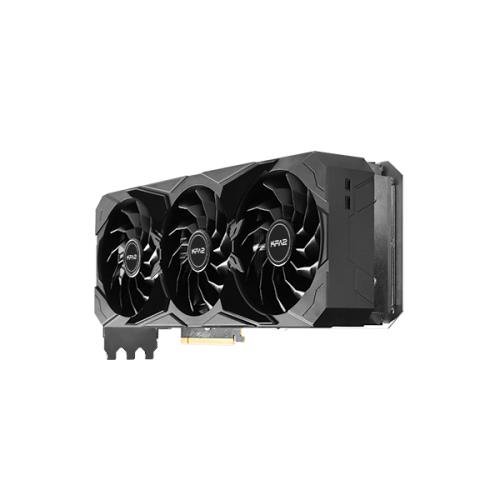

GeForce RTX 4090

Technical Specifications

• Summary: KFA2 GeForce RTX 4090 ST V2 1-Click OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4090. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s)
• Vendor Homepage: https://www.kfa2.com/kfa2/graphics-card/40-series/4090-series/geforce-rtx-4090-st-v2.html
• Name: VGA PCIE16 RTX4090 24GB GDDR6X/RTX 4090 ST V2 1-CLICK OC KFA2
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 4090
• Processor boost clock speed: 2520
• Processor frequency (OC mode): 2535
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 16384
• Discrete graphics card memory: 24
• Graphics card memory type: GDDR6X
• Memory bus: 384
• Data transfer rate: 21
• Memory bandwidth (max): 1008
• Interface type: PCI Express x16 4.0
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPort version: 1.4a
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• Virtual Reality (VR) ready: Yes
• HDCP: Yes
• HDCP version: 2.3
• NVIDIA G-SYNC: Yes
• Cooling type: Active
• Number of fans: 3
• Fan diameter: 102
• Product colour: Black
• Supplementary power connectors: 1x 16-pin
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Length: 352
• Depth: 74
• Height: 153
• Model: GeForce RTX 4090 ST V2 1-Click OC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01645
• Product Net Weight: 0.6
• Unit Calculated Weight: 3
