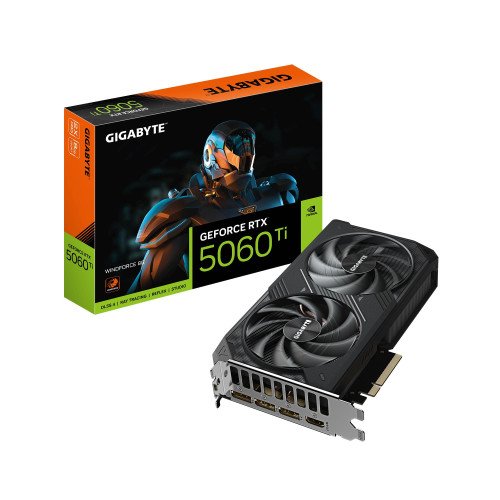

GeForce RTX 5060 Ti

Technical Specifications

• Summary: GIGABYTE GeForce RTX 5060 Ti WINDFORCE 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2572MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N506TWF2-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti, Processor frequency: 2572 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.gigabyte.com/
• Name: VGA PCIE16 RTX5060TI 8GB GDDR7/GV-N506TWF2-8GD GIGABYTE
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5060 Ti
• Processor frequency: 2572
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 4608
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 8
• Graphics card memory type: GDDR7
• Memory bus: 128
• Memory clock speed: 28000
• Data transfer rate: 28
• Interface type: PCI Express x8 5.0
• HDMI ports quantity: 1
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• DirectX version: 12.0
• OpenGL version: 4.6
• NVIDIA G-SYNC: Yes
• Warranty period: 3
• Cooling type: Active
• Cooling technology: GIGABYTE WINDFORCE 2X
• Number of fans: 2
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 2
• Product colour: Black
• Minimum system power supply: 650
• Supplementary power connectors: 1x 8-pin
• Thermal Design Power (TDP): 135
• Weight: 580
• Length: 208
• Depth: 40
• Height: 120
• Package width: 210.5
• Package depth: 295
• Package height: 50
• Package weight: 850
• Package type: Box
• Products per shipping (inner) case: 1
• Model: GIGABYTE GeForce RTX 5060 Ti WINDFORCE 8G (GV-N506TWF2-8GD)
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003205
• Product Net Weight: 0.6
• Unit Calculated Weight: 0.77
