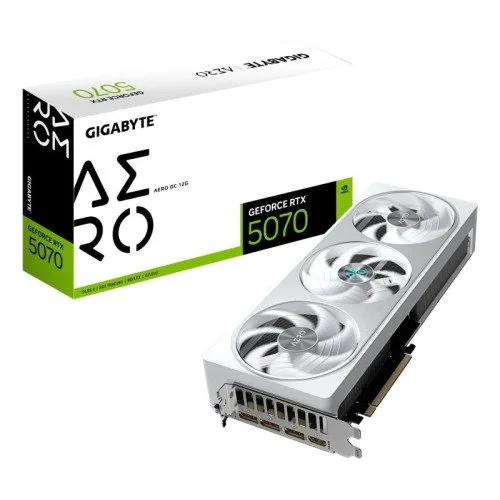

GeForce RTX 5070

Technical Specifications

• Summary: GIGABYTE GeForce RTX 5070 AERO OC 12G Graphics Card - 12GB GDDR7, 192bit, PCI-E 5.0, 2625 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5070AERO OC-12GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070, Processor frequency: 2625 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR7, Memory bus: 192 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)
• Vendor Homepage: https://www.gigabyte.com/
• Name: VGA PCIE16 RTX5070 12GB GDDR7/GV-N5070AERO OC-12GD GIGABYTE
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5070
• Processor frequency: 2625
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 6144
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 12
• Graphics card memory type: GDDR7
• Memory bus: 192
• Memory clock speed: 28000
• Memory bandwidth (max): 28
• Interface type: PCI Express x16 5.0
• HDMI ports quantity: 1
• HDMI version: 2.1b
• DisplayPort version: 2.1a
• DisplayPorts quantity: 3
• DirectX version: 12.0
• OpenGL version: 4.6
• NVIDIA G-SYNC: Yes
• Overclocked (OC) edition: Yes
• Warranty period: 4
• Cooling type: Active
• Cooling technology: GIGABYTE WINDFORCE 3X
• Number of fans: 3
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 2
• Illumination: Yes
• Product colour: White
• Minimum system power supply: 750
• Supplementary power connectors: 1x 16-pin
• Weight: 2000
• Length: 324
• Depth: 56
• Height: 130
• Package width: 230
• Package depth: 435
• Package height: 90
• Package weight: 3000
• Package type: Box
• Quick installation guide: Yes
• Cables included: Power
• Products per shipping (inner) case: 1
• Model: GV-N5070AERO OC-12GD
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01015
• Product Net Weight: 0.7
• Unit Calculated Weight: 2.05
