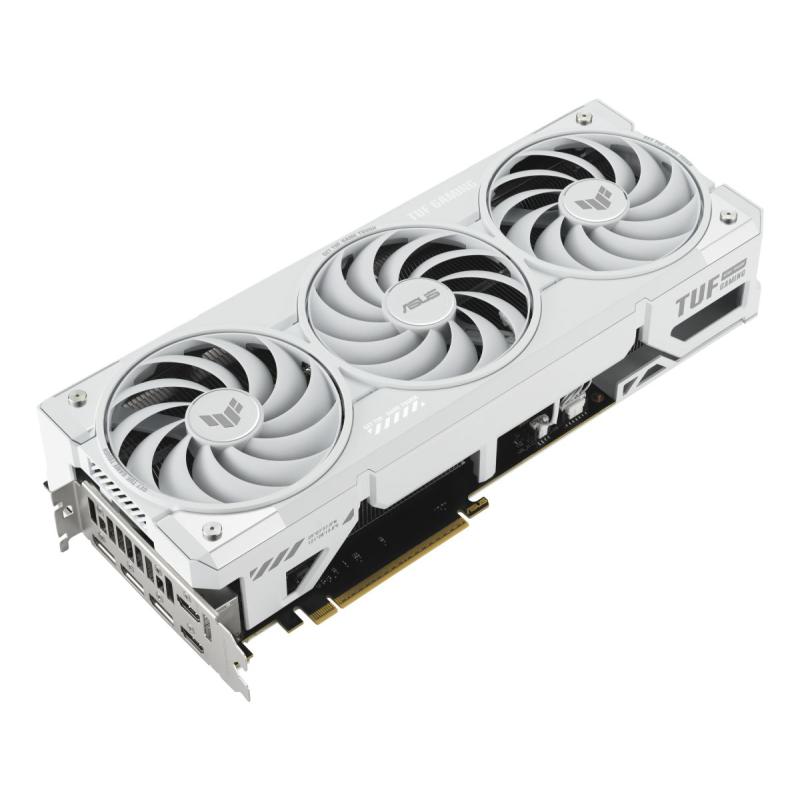

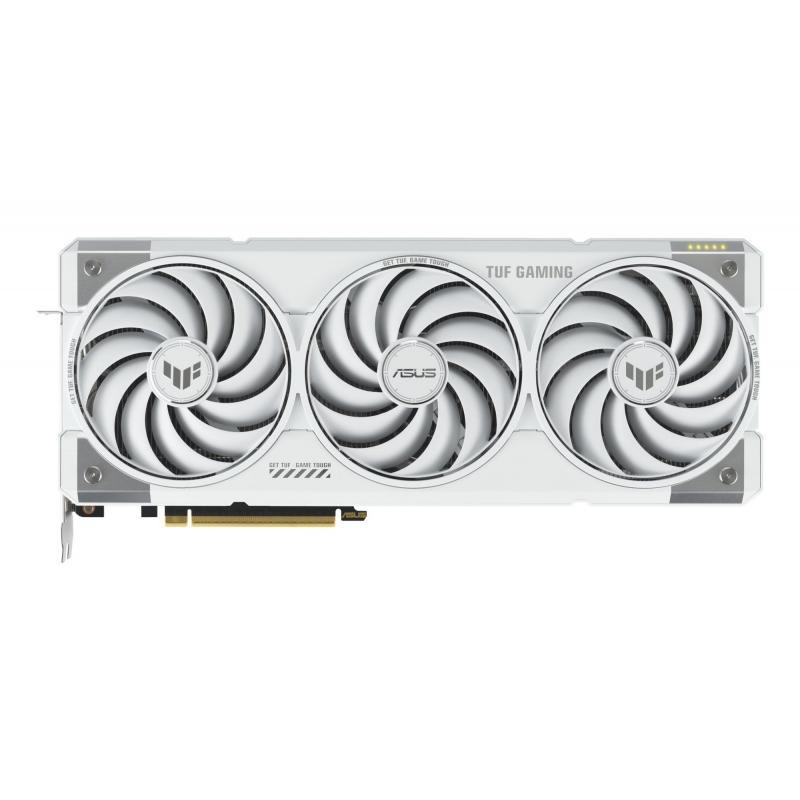

GeForce RTX 5070 Ti

Technical Specifications

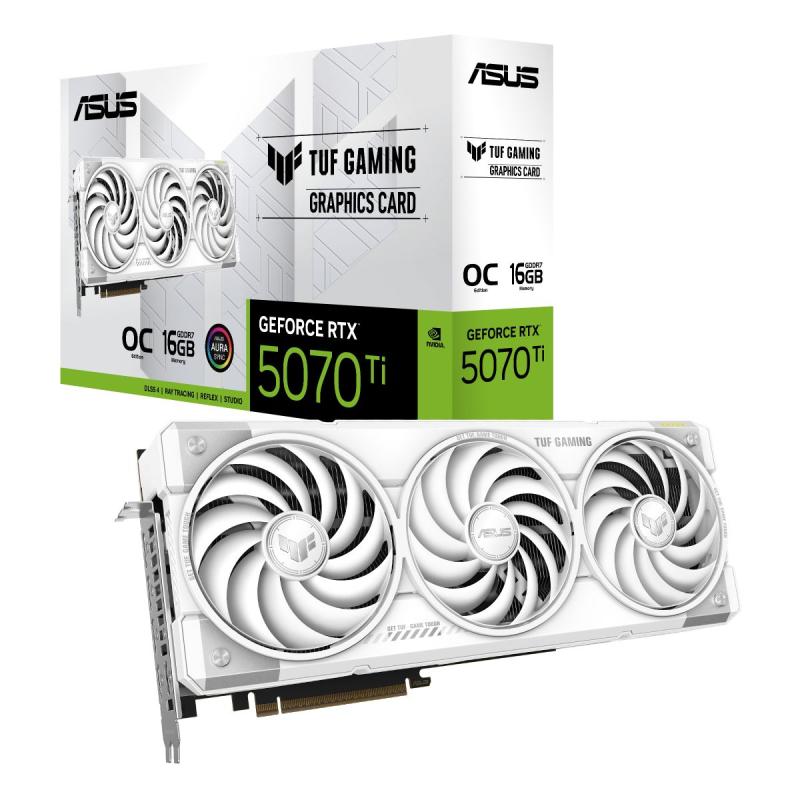

• Summary: ASUS TUF Gaming TUF-RTX5070TI-O16G-WHITE-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
• Vendor Homepage: https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx5070ti-o16g-white-gaming/
• Name: VGA PCIE16 RTX5070TI 16GB/RTX5070TIO16GWHITE-GAMING ASUS
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5070 Ti
• Processor boost clock speed: 2588
• Processor frequency (OC mode): 2610
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 8960
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 16
• Graphics card memory type: GDDR7
• Memory bus: 256
• Memory bandwidth (max): 28
• Interface type: PCI Express 5.0

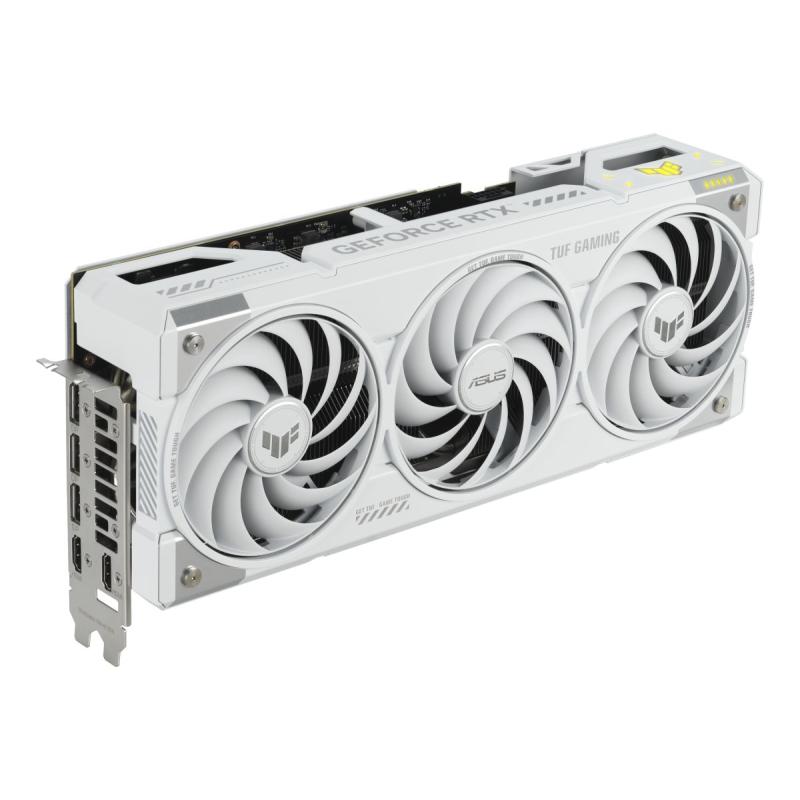

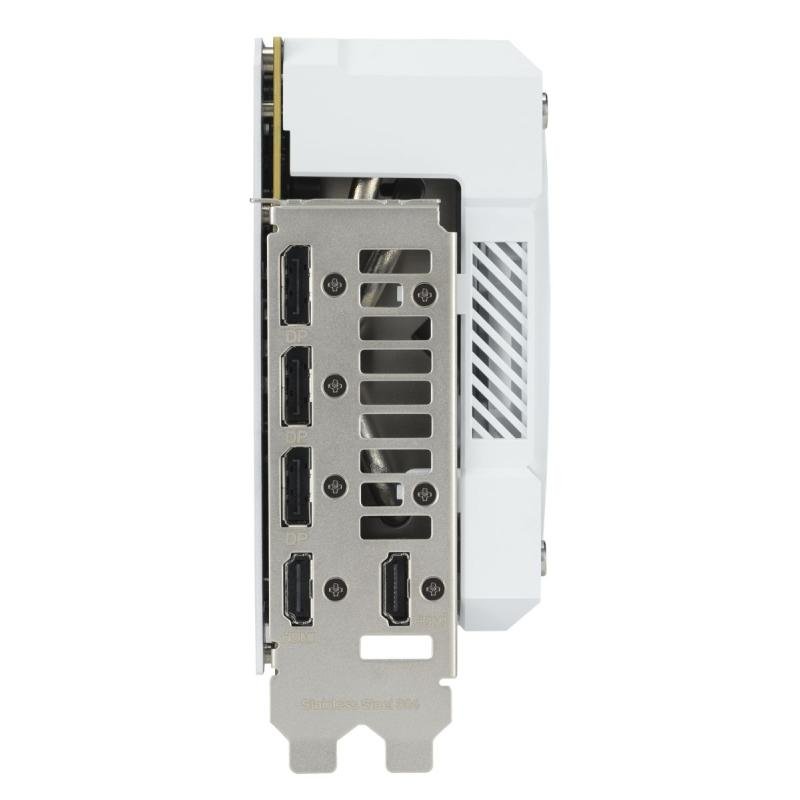

• HDMI ports quantity: 2
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• HDCP: Yes
• HDCP version: 2.3
• NVIDIA G-SYNC: Yes
• NVIDIA Ansel: Yes
• NPU performance up to: 1406
• Overclocked (OC) edition: Yes
• Cooling type: Active
• Cooling technology: ASUS Axial-tech

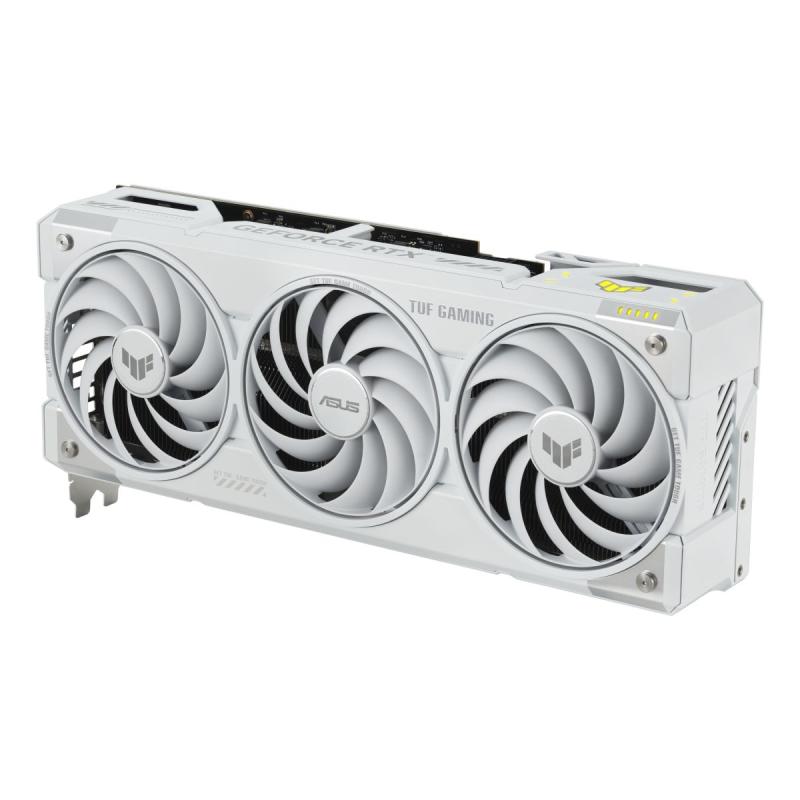

• Number of fans: 3
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 3.125
• Illumination: Yes
• Illumination colour: Multi
• Product colour: White
• Minimum system power supply: 850

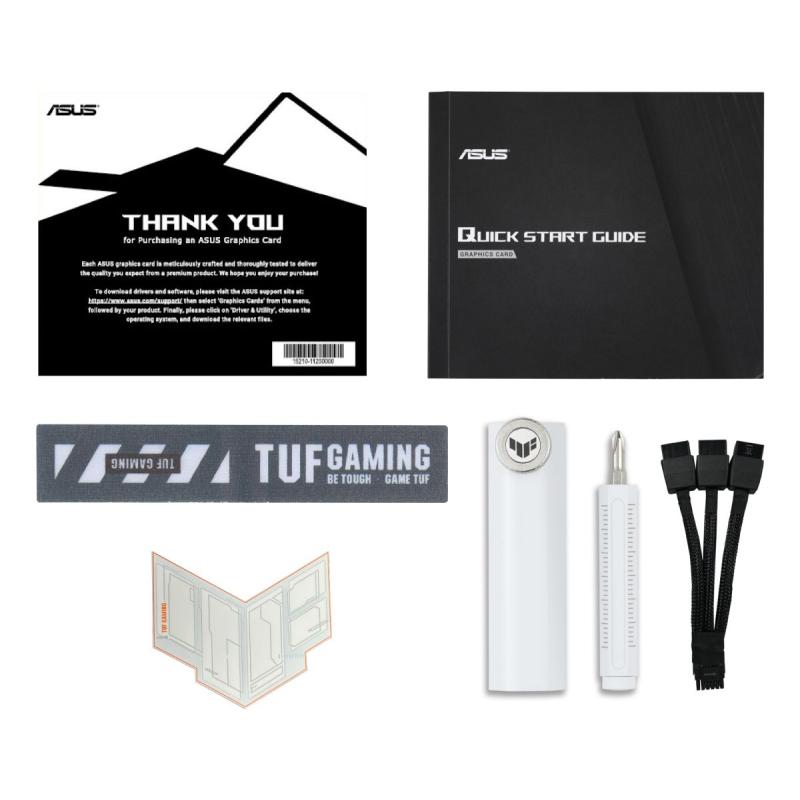

• Supplementary power connectors: 1x 16-pin
• Length: 329
• Depth: 62.5
• Height: 140
• Package width: 420
• Package depth: 226
• Package height: 87
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0082
• Product Net Weight: 1.6
• Unit Calculated Weight: 2
