GeForce RTX 5080

Technical Specifications

• Summary: ASUS ROG Astral - -RTX5080-O16G-WHITE. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5080. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 4 fan(s), Illumination colour: Multi
• Vendor Homepage: https://rog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-white/
• Name: VGA PCIE16 RTX5080 16GB GDDR7/ASTRAL-RTX5080-O16G-WH ASUS
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5080
• Processor boost clock speed: 2760
• Processor frequency (OC mode): 2790
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 10752
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 16
• Graphics card memory type: GDDR7
• Memory bus: 256
• Memory bandwidth (max): 30
• Interface type: PCI Express 5.0

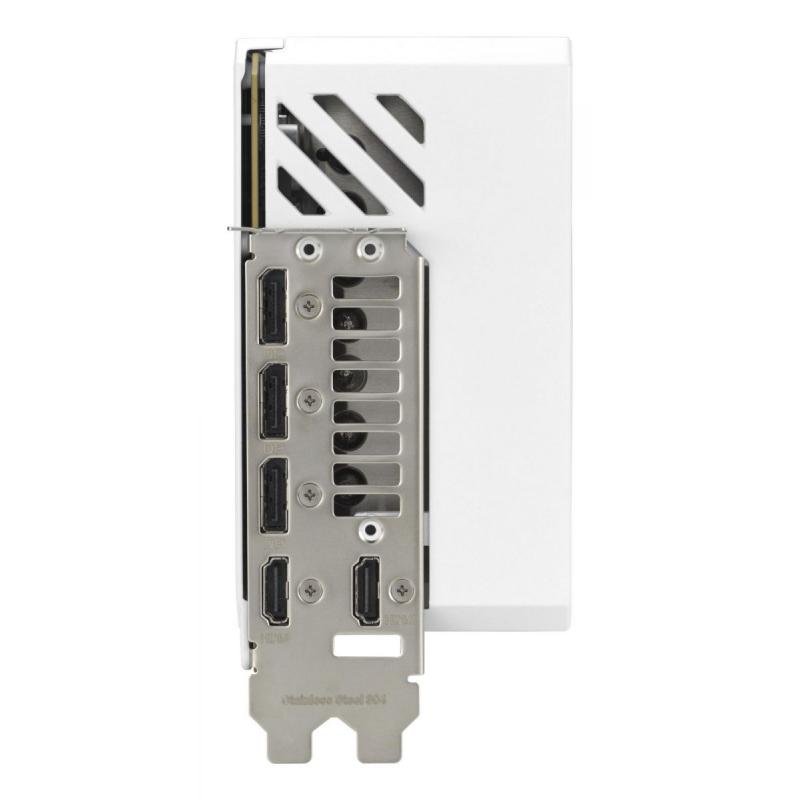

• HDMI ports quantity: 2
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• Virtual Reality (VR) ready: Yes
• HDCP: Yes
• HDCP version: 2.3
• NVIDIA G-SYNC: Yes
• NVIDIA Ansel: Yes
• NPU performance up to: 1801
• Cooling type: Active
• Cooling technology: ASUS Axial-tech
• Number of fans: 4
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 3.8
• Illumination: Yes
• Illumination colour: Multi
• Product colour: White
• Minimum system power supply: 850
• Supplementary power connectors: 1x 16-pin
• Weight: 2860
• Length: 357.6
• Depth: 76
• Height: 149.3
• Package width: 420
• Package depth: 226
• Package height: 126
• Package weight: 4300
• Package type: Box
• Model: ROG-ASTRAL-RTX5080-O16G-WHITE
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01256
• Product Net Weight: 2.8
• Unit Calculated Weight: 4.3
