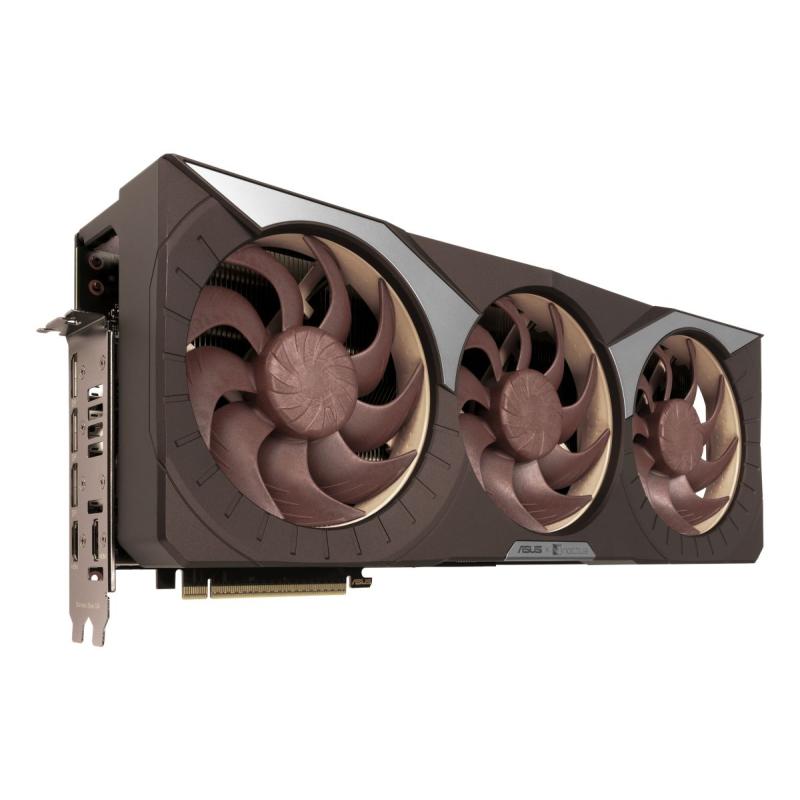

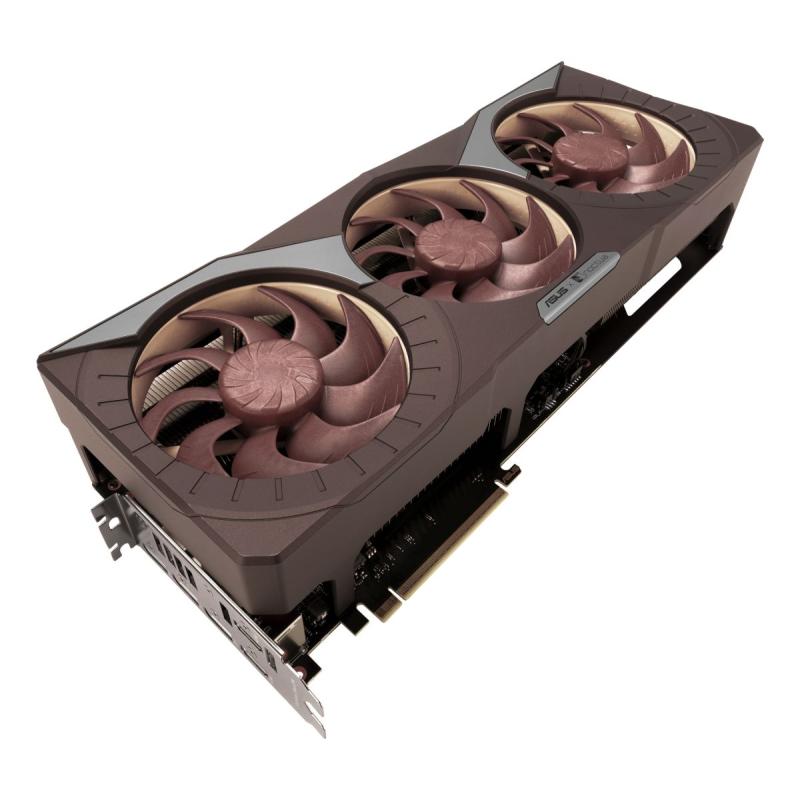

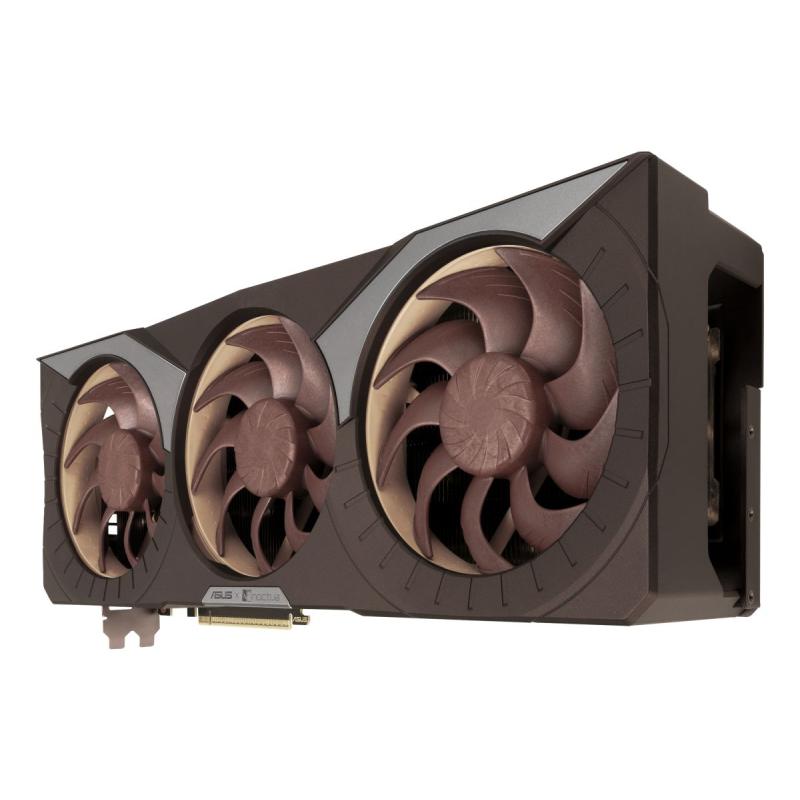

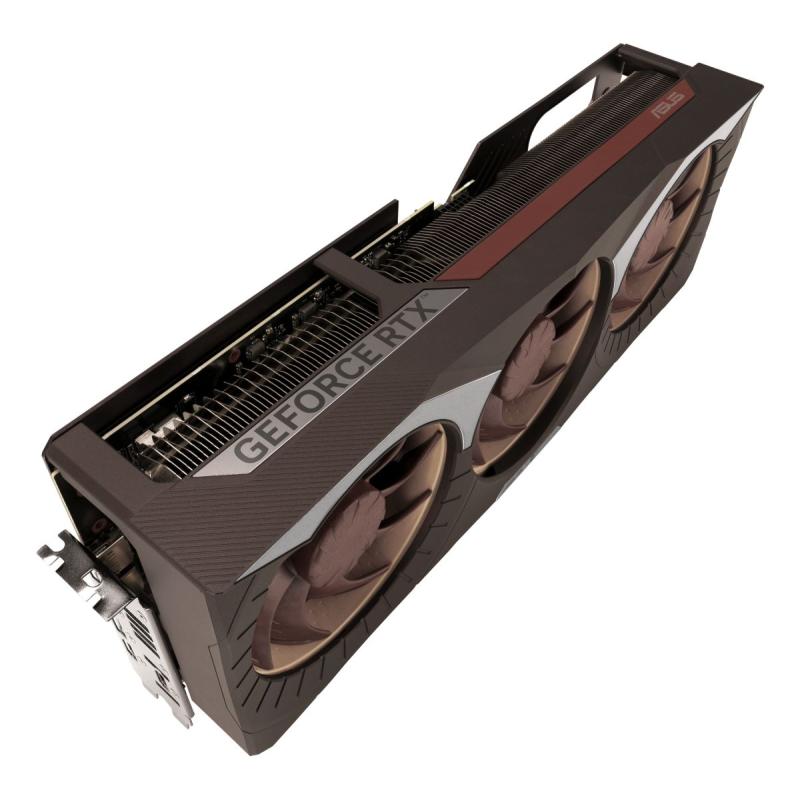

GeForce RTX 5080

Technical Specifications

• Summary: ASUS RTX5080-O16G-NOCTUA. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5080. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
• Vendor Homepage: https://www.asus.com/
• Name: VGA PCIE16 RTX5080 16GB GDDR7/RTX5080-O16G-NOCTUA ASUS
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5080
• Processor boost clock speed: 2700
• Processor frequency (OC mode): 2730
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 10752
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 16
• Graphics card memory type: GDDR7
• Memory bus: 256
• Data transfer rate: 30
• Interface type: PCI Express 5.0

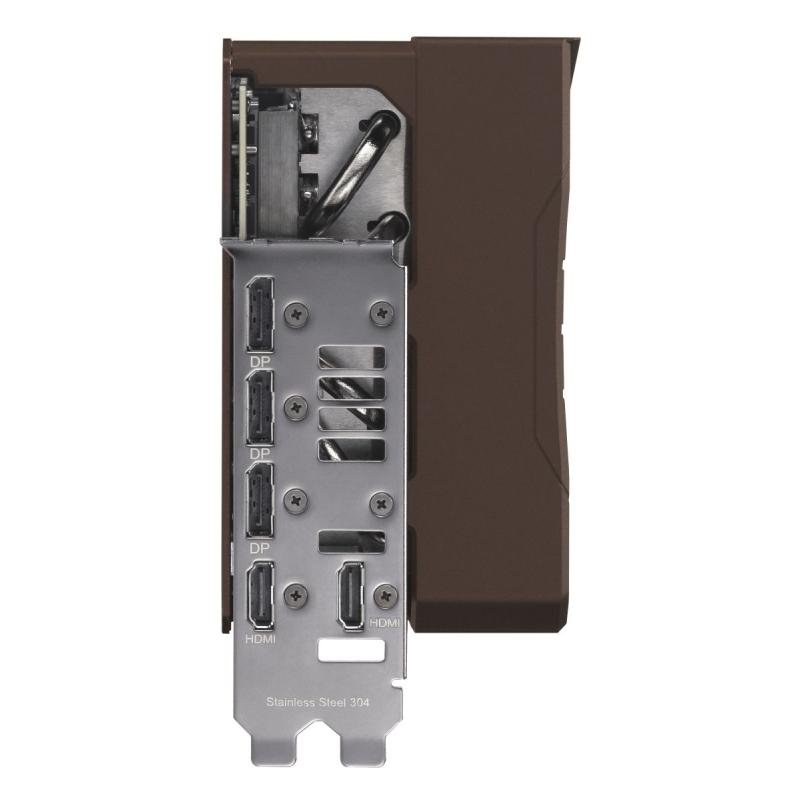

• HDMI ports quantity: 2
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• DirectX version: 12 Ultimate
• OpenGL version: 4.6
• Virtual Reality (VR) ready: Yes
• HDCP: Yes
• HDCP version: 2.3
• NVIDIA G-SYNC: Yes
• NPU performance up to: 1801
• Overclocked (OC) edition: Yes

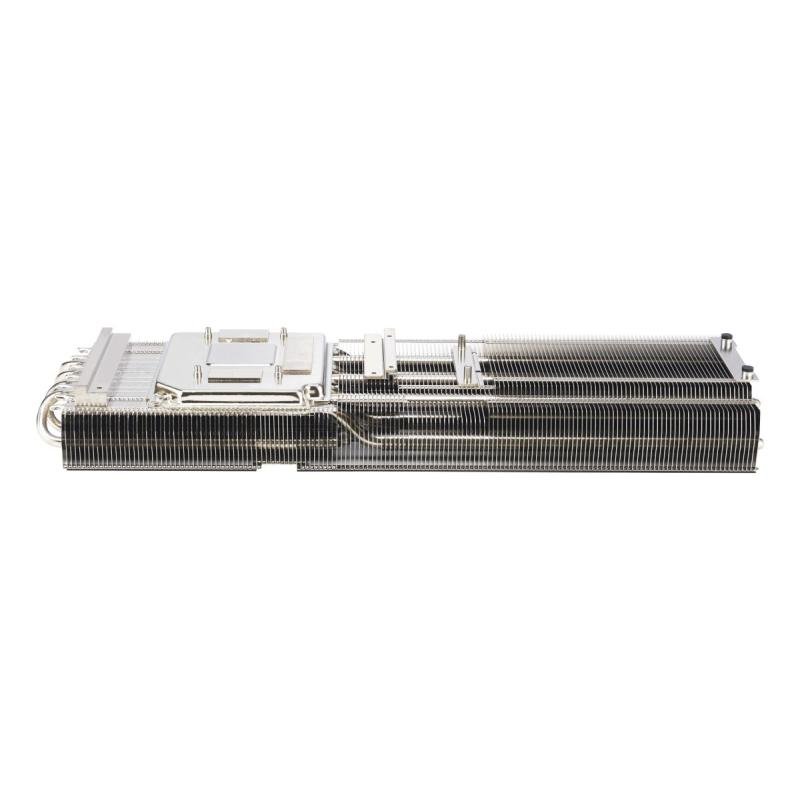

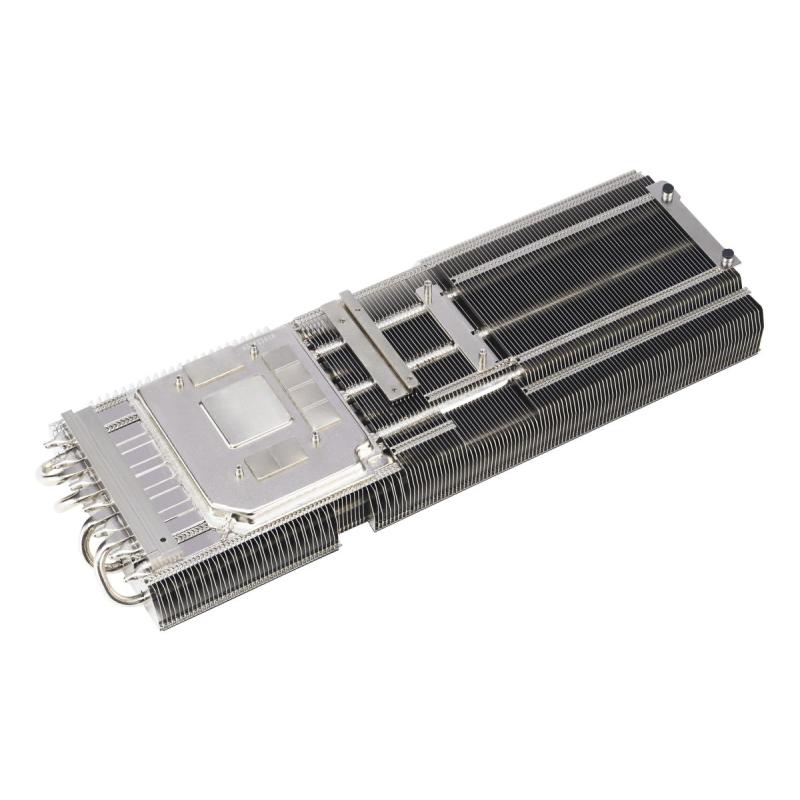

• Cooling type: Active
• Number of fans: 3
• Fan diameter: 120
• Bracket height: Full-Height (FH)
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 4
• Product colour: Brown/Silver
• Minimum system power supply: 850
• Supplementary power connectors: 1x 16-pin
• Length: 385
• Depth: 80
• Height: 151

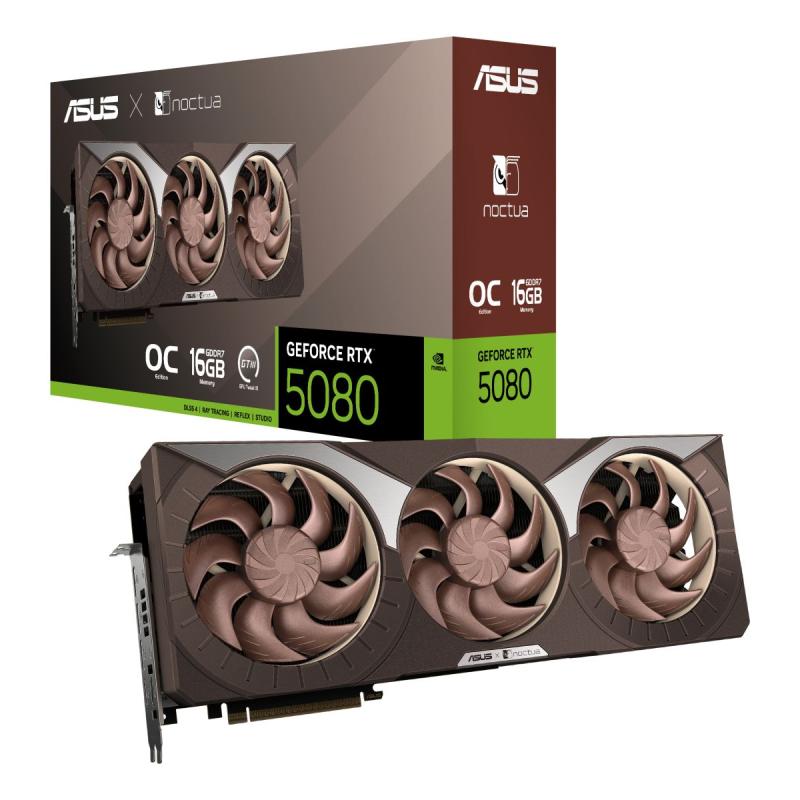

• Package type: Box
• Manual: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01825
• Product Net Weight: 3
• Unit Calculated Weight: 3.9
