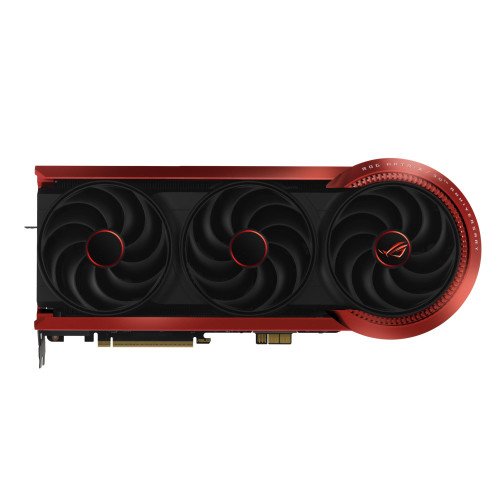

GeForce RTX 5090

Technical Specifications

• Summary: ASUS ROG-MATRIX-RTX5090-P32G-30TH. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5090. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR7, Memory bus: 512 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 4 fan(s), Illumination colour: Multi
• Vendor Homepage: https://rog.asus.com/graphics-cards/graphics-cards/rog-matrix/rog-matrix-rtx5090-p32g-30th/
• Name: VGA PCIE16 RTX5090 32GB GDDR7/MATRIX-RTX5090-P32G-30TH ASUS
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5090
• Processor boost clock speed: 2730
• Processor frequency (OC mode): 2760
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 21760
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 32
• Graphics card memory type: GDDR7
• Memory bus: 512
• Data transfer rate: 28
• Interface type: PCI Express 5.0
• HDMI ports quantity: 2
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• OpenGL version: 4.6
• HDCP: Yes
• HDCP version: 2.3
• NPU performance up to: 3352
• Cooling type: Active
• Cooling technology: ASUS Axial-tech
• Number of fans: 4
• Form factor: Full-Height/Full-Length (FH/FL)
• Number of slots: 3.9
• Illumination: Yes
• Illumination colour: Multi
• Product colour: Black/Red
• Minimum system power supply: 1200
• Supplementary power connectors: 1x 16-pin
• Weight: 3269
• Length: 370.3
• Depth: 77.3
• Height: 150.5
• Package width: 495
• Package depth: 278
• Package height: 155
• Package weight: 5910
• Package type: Box
• Manual: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.012
• Product Net Weight: 2
• Unit Calculated Weight: 2
