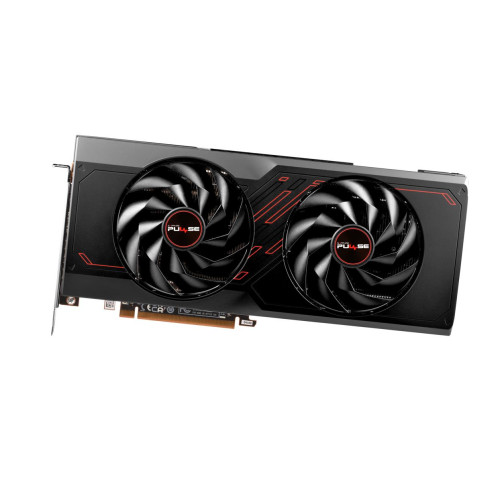

Radeon RX 7800 XT

Technical Specifications

• Description:

  Digital Power Design
  SAPPHIRE NITRO+ & PULSE AMD Radeon RX 7800 Series are designed with digital power which provides accurate power control and excellent power efficiency

  Ultra High Performance Conductive Polymer Aluminum Capacitor
  The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7800 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

  High TG Copper PCB
  The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

  Angular Velocity Fan Blade
  The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

  Optimized Composite Heatpipe
  The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

  Fuse Protection
  In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

  Two-Ball Bearing
  These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

• Summary: Sapphire PULSE 11330-02-20G. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT, Processor frequency: 2124 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-7800-xt-16g-gddr6#Specification
• Name: VGA PCIE16 RX7800XT 16GB GDDR6/PULSE 11330-02-20G SAPPHIRE
• Category Code: VGP
• Graphics processor family: AMD
• Graphics processor: Radeon RX 7800 XT
• Processor frequency: 2124
• Processor boost clock speed: 2430
• Processor boost clock speed (Gaming mode): 2124
• Maximum resolution: 7680 x 4320
• CUDA: No
• Infinity cache: 64
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Ray accelerators: 60
• Stream processors: 3840
• Discrete graphics card memory: 16
• Graphics card memory type: GDDR6
• Memory bus: 256
• Data transfer rate: 19.5
• Interface type: PCI Express x16 4.0
• HDMI ports quantity: 2
• DisplayPort version: 2.1
• DisplayPorts quantity: 2
• DirectX version: 12 Ultimate
• Warranty period: 3
• Cooling type: Active
• Cooling technology: Sapphire Dual-X
• Number of fans: 2
• Number of slots: 2.5
• Product colour: Black
• Minimum system power supply: 700
• Power consumption (max): 266
• Power consumption (typical): 266
• Supplementary power connectors: 2x 8-pin
• Windows operating systems supported: Windows 10/Windows 11 x64
• Linux operating systems supported: Yes
• Length: 280
• Depth: 52.57
• Height: 128.75
• Quick installation guide: Yes
• Model: 11330-02-20G
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009288
• Product Net Weight: 1.3
• Unit Calculated Weight: 2.5
