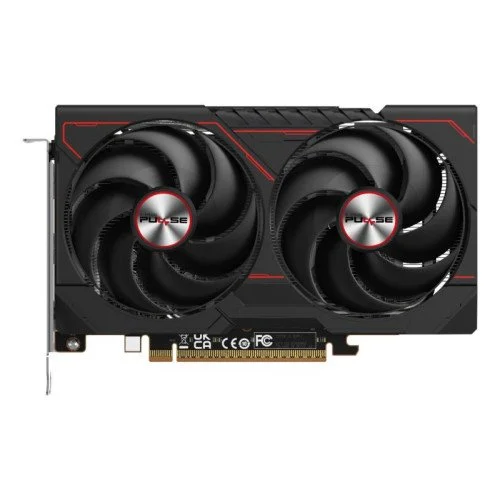

VGA PCIE16 RX9060XT 8GB GDDR6/PULSE 11351-14-10G SAPPHIRE

Technical Specifications

• Description:

  Honeywell PTM7950 TIM
  The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

  Free Flow
  The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

  AeroCurve Fan Blade
  The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

  Optimized Composite Heatpipe
  The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

  Integrated Cooling Module
  Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

  Tough Metal Backplate
  The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

  FrameDefense
  The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

  Fuse Protection
  In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

  High TG Copper PCB
  The GPU is mounted on to the high-density 6 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

  Digital Power Design
  SAPPHIRE PULSE AMD Radeon™ RX 9060 Series are designed with digital power which provides accurate power control and excellent power efficiency

  • GPU: Boost Clock: Up to 3040 MHz
  • GPU: Game Clock: Up to 2440 MHz
  • Memory: 8GB/128 bit DDR6. 18Gbps Effective
  • Stream Processors: 1792
  • AMD RDNA™ 4 Architecture
  • Ray Accelerator: 28

• Summary: Sapphire PULSE Radeon RX 9060 OC. Graphics processor family: AMD, Graphics processor: Radeon RX 9060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-9060-8g-gddr6
• Name: VGA PCIE16 RX9060XT 8GB GDDR6/PULSE 11351-14-10G SAPPHIRE
• Category Code: VGP
• Graphics processor family: AMD
• Graphics processor: Radeon RX 9060
• Processor boost clock speed: 3040
• Processor boost clock speed (Gaming mode): 2440
• Maximum resolution: 7680 x 4320
• Compute units: 28
• CUDA: No
• AI accelerators: 56
• Infinity cache: 32
• Maximum displays per videocard: 3
• Parallel processing technology support: Not supported
• Ray accelerators: 28
• Stream processors: 1792
• Discrete graphics card memory: 8
• Graphics card memory type: GDDR6
• Memory bus: 128
• Data transfer rate: 18
• Interface type: PCI Express x16 5.0
• HDMI ports quantity: 2
• DisplayPort version: 2.1a
• DisplayPorts quantity: 1
• TV tuner integrated: No
• DirectX version: 12 Ultimate
• Dual Link DVI: No
• AMD FreeSync: Yes
• Overclocked (OC) edition: Yes
• Cooling type: Active
• Cooling technology: Sapphire Dual-X
• Number of fans: 2
• Number of slots: 2
• Product colour: Black
• Minimum system power supply: 450
• Supplementary power connectors: 1x 8-pin
• Thermal Design Power (TDP): 136
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Linux operating systems supported: Yes
• Minimum RAM: 8192
• Length: 200
• Depth: 40.6
• Height: 122
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001176
• Product Net Weight: 0.3
• Unit Calculated Weight: 0.4
