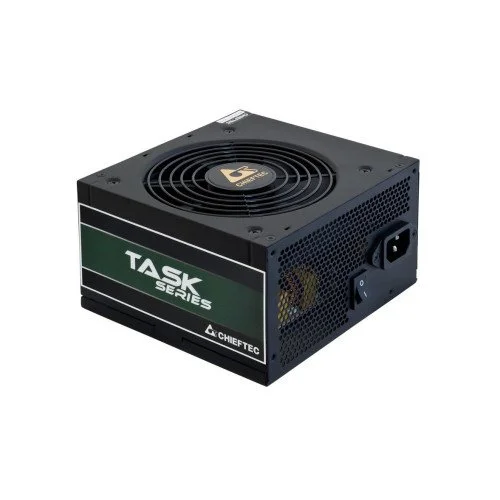

CASE PSU ATX 700W/TPS-700S CHIEFTEC

CASE PSU ATX 700W/TPS-700S CHIEFTEC
CASE PSU ATX 700W/TPS-700S CHIEFTEC
  • Total power: 700
  • 80 PLUS certification: 80 PLUS Bronze
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    4,665ден.
    • Достапност: Има залиха
    • Бренд: CHIEFTEC
    • Шифра: 404100
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
    • Vendor Homepage: https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
    • Name: CASE PSU ATX 700W/TPS-700S CHIEFTEC
    • Category Code: PSU
    • Total power: 700
    • AC input voltage: 100 - 240
    • AC input frequency: 47 - 63
    • Input current: 10
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+12V): 648
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 19
    • Max output current (+12V): 54
    • Max output current (+5V): 17
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Power protection features: Over voltage/Overheating/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 650
    • Number of SATA power connectors: 6
    • SATA power cable length: 150/500
    • Peripheral (Molex) power connectors (4-pin): 3
    • Peripheral (Molex) power cable length: 150/500
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 2
    • PCI Express power cable length: 500
    • ATX power connector (20+4 pin): Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS Bronze
    • Supported motherboard form factors: ATX
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • Product colour: Black
    • Fan diameter: 120
    • Number of fans: 1
    • Compliance certificates: RoHS
    • Certification: ErP, CE, CB, EAC, TUV
    • Width: 150
    • Depth: 140
    • Height: 87
    • Weight: 1740
    • Package weight: 2150
    • Package type: Box
    • Harmonized System (HS) code: 84733020
    • EPS cable length: 650
    • Model name: TPS-700S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004662
    • Unit Calculated Weight: 2
    Specs
    80 PLUS certification 80 PLUS Bronze
    AC input frequency 47 - 63
    AC input voltage 100 - 240
    ATX power connector (20+4 pin) Yes
    Cabling type Non-Modular
    Category Code PSU
    Certification ErP, CE, CB, EAC, TUV
    Combined power (+12V) 648
    Combined power (+5Vsb) 12.5
    Combined power (-12V) 3.6
    Compliance certificates RoHS
    Depth 140
    Description

    TPS-700S

    The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

    • 80PLUS Bronze certified efficiency
    • 650mm long cables for maximum case compatibility
    • All modern protection and safety features included
    EPS cable length 650
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Harmonized System (HS) code 84733020
    Height 87
    Input current 10
    Max output current (+12V) 54
    Max output current (+3.3V) 19
    Max output current (+5V) 17
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.3
    Model name TPS-700S
    Motherboard power cable length 650
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 700W/TPS-700S CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 6
    Package type Box
    Package weight 2150
    PCI Express power cable length 500
    PCI Express power connectors (6+2 pin) 2
    Peripheral (Molex) power cable length 150/500
    Peripheral (Molex) power connectors (4-pin) 3
    PictureUrl https://static.elko.cloud/ProductImages/d5e0cf21-b27f-4bf8-871d-b2d3ce00eb7a.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overheating/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC
    SATA power cable length 150/500
    Summary Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
    Supported motherboard form factors ATX
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/d5e0cf21-b27f-4bf8-871d-b2d3ce00eb7a.Jpeg
    Total power 700
    Unit Calculated Volume 0.004662
    Unit Calculated Weight 2
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
    Weight 1740
    Width 150
