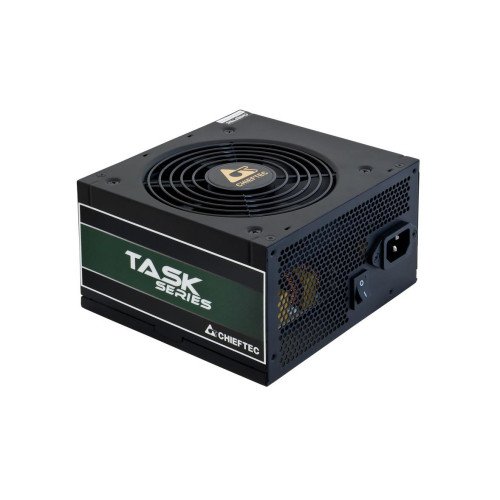

CASE PSU ATX 700W/TPS-700S CHIEFTEC

CASE PSU ATX 700W/TPS-700S CHIEFTEC
CASE PSU ATX 700W/TPS-700S CHIEFTEC
  • Total power: 700
  • 80 PLUS certification: 80 PLUS Bronze
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    4,444ден.
    • Достапност: Има залиха
    • Шифра: 404100
    • Гарантен рок: 12 месеци
    • Рок на испорака: 22.03
    CHIEFTEC
    Во кошничка
    Листа на желби Спореди
    Сподели

    Technical Specifications

    • Summary: Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
    • Vendor Homepage: https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
    • Name: CASE PSU ATX 700W/TPS-700S CHIEFTEC
    • Category Code: PSU
    • Total power: 700
    • AC input voltage: 100 - 240
    • AC input frequency: 47 - 63
    • Input current: 10
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+12V): 648
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 19
    • Max output current (+12V): 54
    • Max output current (+5V): 17
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Power protection features: Over voltage/Overheating/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 650
    • Number of SATA power connectors: 6
    • SATA power cable length: 150/500
    • Peripheral (Molex) power connectors (4-pin): 3
    • Peripheral (Molex) power cable length: 150/500
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 2
    • PCI Express power cable length: 500
    • ATX power connector (20+4 pin): Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS Bronze
    • Supported motherboard form factors: ATX
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • Product colour: Black
    • Fan diameter: 120
    • Number of fans: 1
    • Compliance certificates: RoHS
    • Certification: ErP, CE, CB, EAC, TUV
    • Width: 150
    • Depth: 140
    • Height: 87
    • Weight: 1740
    • Package weight: 2150
    • Package type: Box
    • Harmonized System (HS) code: 84733020
    • EPS cable length: 650
    • Model name: TPS-700S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004662
    • Unit Calculated Weight: 2
