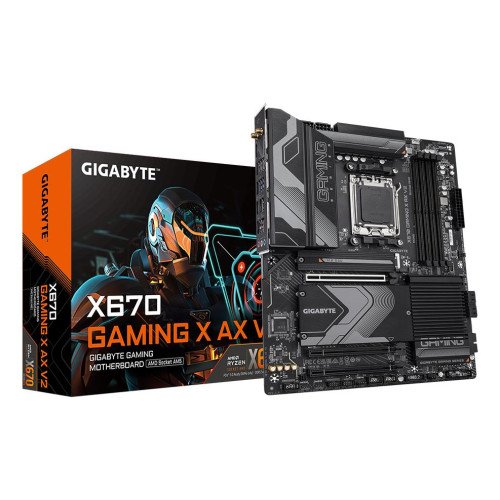

MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE

MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
Нема на залиха
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
MB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
  • Motherboard chipset: AMD X670
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 8
  • 17,624ден.
    • Достапност: Нема на залиха
    • Бренд: GIGABYTE
    • Шифра: 407201
    • Гарантен рок: 24 месеци
    • Достава: 13-16 дена
    1
    Specifications
    ECC сompatibilityNon-ECC
    Unit Depth34
    Unit Height8
    Unit Width27
    Specs
    12V power connectorYes
    ACPI version5.0
    ATX Power connector (24-pin)Yes
    Audio output channels7.1
    Batteries includedYes
    Battery technologyLithium-Manganese Dioxide (LiMnO2)
    Battery typeCR2032
    Battery weight3
    BIOS memory size256
    BIOS typeUEFI AMI
    BluetoothYes
    Bluetooth version5.3
    Bundled softwareNorton Internet Security
    Cables includedSATA
    Category CodeMBA
    Clear CMOS buttonYes
    Clear CMOS jumperYes
    Compatible processor seriesAMD Ryzen 7000 Series
    Component forPC
    Country of originChina
    CPU fan connectorYes
    Depth244
    Desktop Management Interface (DMI) version2.7
    DirectX version12.0
    EPS power connector (8-pin)Yes
    Ethernet interface type2.5 Gigabit Ethernet
    Ethernet LANYes
    Ethernet LAN (RJ-45) ports1
    Front panel audio connectorYes
    Front panel connectorYes
    HDCPYes
    HDMI ports quantity1
    HDMI version2.1
    Headphone outputs3
    Height35
    Lithium weight per battery0.07
    Maximum internal memory192
    Maximum internal memory supported by processor192
    Maximum resolution4096 x 2160
    Memory channelsDual-channel
    Memory slots typeDIMM
    Microphone inYes
    ModelX670 GAMING X AX V2
    Motherboard chipsetAMD X670
    Motherboard chipset familyAMD
    Motherboard form factorATX
    NameMB AMD X670 SAM5 ATX/X670 GAMING X AX V2 GIGABYTE
    Number of battery cells1
    Number of HDDs supported4
    Number of M.2 (M) slots4
    Number of memory slots4
    Number of SATA III connectors4
    Number of storage drives supported8
    Package depth270
    Package height80
    Package weight2150
    Package width355
    Parallel processing technology supportNot supported
    PC health monitoringFan/Temperature/Voltage/Water cooling
    PCI Express x16 slots3
    Processor manufacturerAMD
    Processor socketSocket AM5
    Product colourBlack
    Product Net Weight2
    Product typeOffice
    Products per shipping (inner) case1
    RAID levels0/1/10
    RAID supportYes
    RGB LED pin headerYes
    Shipping Box Depth45
    Shipping Box Height38
    Shipping Box Weight12.5
    Shipping Box Width31
    SummaryGIGABYTE X670 GAMING X AX V2 Motherboard - Supports AMD Ryzen 7000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    Supported memory clock speed (max)8000
    Supported memory clock speeds4400/4800/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000
    Supported memory module capacities12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
    Supported memory typesDDR5-SDRAM
    Supported processor socketsSocket AM5
    Supported storage drive interfacesM.2,SATA III
    Supported storage drive typesHDD & SSD
    System Management BIOS (SMBIOS) version2.7
    Top Wi-Fi standardWi-Fi 6E (802.11ax)
    TPM connectorYes
    Unbuffered memoryYes
    Unit Calculated Volume0.0106
    Unit Calculated Weight2.5
    Units per Shipping Box5
    USB 2.0 connectors2
    USB 2.0 ports quantity4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
    USB 3.2 Gen 2x2 Type-C ports quantity1
    USB connector typeUSB Type-A/USB Type-C
    Vendor Homepagehttps://www.gigabyte.com/
    Warranty period3
    Wi-FiYes
    Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
    Width305
    WiFi-AP antenna jack2
    Windows operating systems supportedWindows 10 x64/Windows 11 x64
    WLAN controller modelRealtek RTL8852CE
