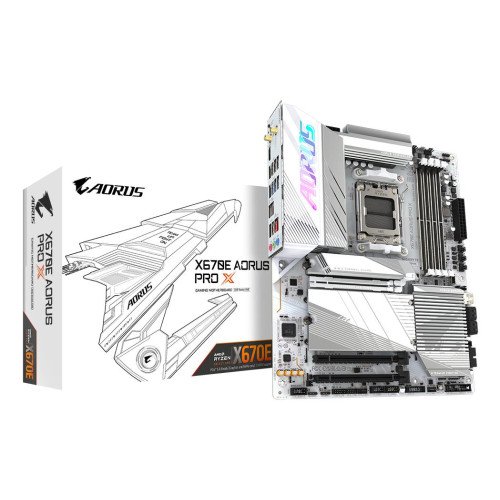

X670E AORUS PRO X

Technical Specifications

• Summary: GIGABYTE X670E AORUS PRO X Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
• Vendor Homepage: https://www.gigabyte.com/
• Name: MB AMD X670 SAM5 ATX/X670E AORUS PRO X GIGABYTE
• Category Code: MBA
• Model: X670E AORUS PRO X
• Motherboard chipset: AMD X670
• Product colour: White
• PC health monitoring: Fan/Temperature/Voltage/Water cooling
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series
• Supported processor sockets: Socket AM5
• Maximum internal memory supported by processor: 192
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000
• Supported memory clock speed (max): 8000
• Maximum internal memory: 192
• Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,PCI Express 5.0,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 8
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2160
• HDCP: Yes
• DirectX version: 12.0
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2x2 connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Headphone outputs: 3
• Microphone in: Yes
• WiFi-AP antenna jack: 2
• USB connector type: USB Type-A/USB Type-C
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.3
• PCI Express x16 slots: 3
• Number of M.2 (M) slots: 4
• BIOS type: UEFI AMI
• BIOS memory size: 256
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Clear CMOS button: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 335
• Number of battery cells: 1
• Package depth: 270
• Package height: 80
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 2400
• Battery type: CR2032
• Width: 305
• Depth: 244
• Height: 35
• Batteries included: Yes
• Cables included: SATA
• Bundled software: Norton Internet Security
• Warranty period: 3
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.01094
• Unit Calculated Weight: 2.77
