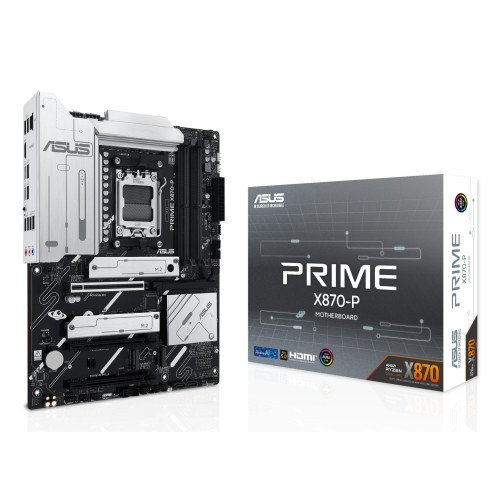

MB AMD X870 SAM5 ATX/PRIME X870-P ASUS

MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
MB AMD X870 SAM5 ATX/PRIME X870-P ASUS
  • Motherboard chipset: AMD X870
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
  • 21,718ден.
    • Достапност: Има надворешна залиха
    • Бренд: ASUS
    • Шифра: 425726
    • Гарантен рок: 36 месеци
    • Достава: 13-16 дена
    1
    Specifications
    ECC сompatibilityECC & Non-ECC
    Unit Depth29
    Unit Height10
    Unit Width29
    Specs
    12V power connectorYes
    ATX Power connector (24-pin)Yes
    Audio output channels7.1
    Back-to-BIOS buttonYes
    BIOS memory size256
    BIOS typeUEFI AMI
    Cables includedSATA
    Category CodeMBA
    Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component forPC
    Cooling typePassive
    CPU fan connectorYes
    Depth244
    DisplayPort version1.4a
    EPS power connector (8-pin)Yes
    Ethernet interface type2.5 Gigabit Ethernet
    Ethernet LANYes
    Ethernet LAN (RJ-45) ports1
    Front panel audio connectorYes
    HDMI ports quantity1
    HDMI version2.1
    Height48
    Line-inYes
    Maximum internal memory192
    Memory channelsDual-channel
    Memory slots typeDIMM
    Microphone inYes
    ModelPRIME X870-P
    Motherboard chipsetAMD X870
    Motherboard chipset familyAMD
    Motherboard form factorATX
    NameMB AMD X870 SAM5 ATX/PRIME X870-P ASUS
    Number of chassis fan connectors4
    Number of COM connectors1
    Number of HDDs supported2
    Number of M.2 (M) slots4
    Number of memory slots4
    Number of SATA III connectors2
    Number of storage drives supported6
    Package depth273
    Package height68
    Package weight1500
    Package width353
    Parallel processing technology supportNot supported
    PCI Express x16 (Gen 4.x) slots2
    PCI Express x16 (Gen 5.x) slots1
    Power source typeATX
    Processor manufacturerAMD
    Processor socketSocket AM5
    Product colourBlack
    Product Net Weight2
    Product typeOffice
    RAID levels0/1/10/5
    RAID supportYes
    RGB LED pin headerYes
    Shipping Box Depth29
    Shipping Box Height10
    Shipping Box Weight2.1
    Shipping Box Width29
    SummaryASUS PRIME X870-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet
    Supported memory clock speed (max)8000
    Supported memory typesDDR5-SDRAM
    Supported processor socketsSocket AM5
    Supported storage drive interfacesM.2,SATA III
    Supported storage drive typesHDD & SSD
    TPM connectorYes
    Unbuffered memoryYes
    Unit Calculated Volume0.00841
    Unit Calculated Weight2.1
    Units per Shipping Box1
    USB 2.0 connectors2
    USB 2.0 ports quantity4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
    USB 3.2 Gen 2 (3.1 Gen 2) connectors1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
    USB4 Gen 2x2 ports quantity2
    Vendor Homepagehttps://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p/
    Weight1440
    Width305
    Windows operating systems supportedWindows 10/Windows 11
