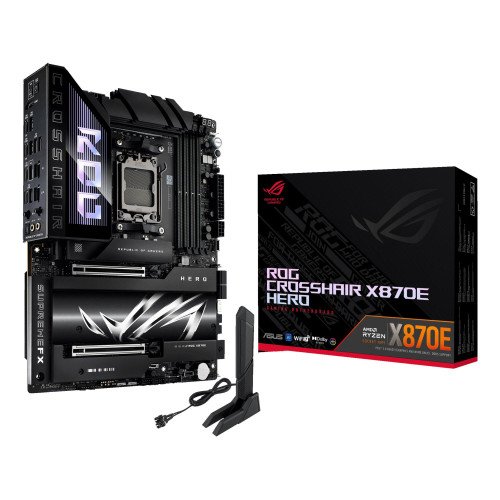

ROG CROSSHAIR X870E HERO

Technical Specifications

• Summary: ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
• Name: MB AMD X870E SAM5 ATX/ROG CROSSHAIR X870E HERO ASUS
• Category Code: MBA
• Model: ROG CROSSHAIR X870E HERO
• Motherboard chipset: AMD X870E
• Audio chip: Realtek ALC4082
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Maximum internal memory: 192
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III,SlimSAS
• Number of HDDs supported: 5
• Number of storage drives supported: 10
• RAID support: Yes
• RAID levels: 0/1/10/5
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2x2 connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 4
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• USB4 Gen 2x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 2
• HDMI ports quantity: 1
• Headphone outputs: 1
• Microphone in: Yes
• S/PDIF out port: Yes
• WiFi-AP antenna jack: 1
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet/5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 4.x) slots: 4
• PCI Express x16 (Gen 5.x) slots: 2
• Number of M.2 (M) slots: 5
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Yes
• Package width: 370
• Package depth: 312
• Package height: 108
• Package weight: 4265
• Width: 305
• Depth: 244
• Height: 50
• Cables included: SATA
• Drivers included: Yes
• Weight: 2546
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01376
• Unit Calculated Weight: 4
