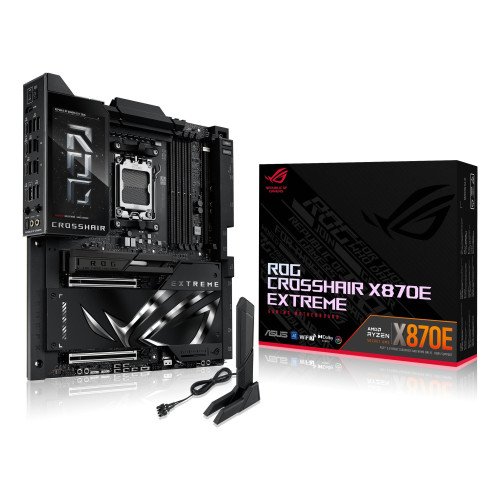

ROG CROSSHAIR X870E EXTREME

ROG CROSSHAIR X870E EXTREME
ROG CROSSHAIR X870E EXTREME
  • Motherboard chipset: AMD X870E
  • Motherboard form factor: Extended ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 10
    • Врз основа на 0 коментари. - Напиши коментар
    71,474ден.
    • Достапност: Има залиха
    • Бренд: ASUS
    • Шифра: 450167
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/
    • Name: MB AMD X870E SAM5 EATX/CROSSHAIR X870E EXTREME ASUS
    • Category Code: MBA
    • Model: ROG CROSSHAIR X870E EXTREME
    • Motherboard chipset: AMD X870E
    • Audio chip: Realtek ALC4082
    • Product colour: Black
    • Component for: PC
    • Motherboard form factor: Extended ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III,SlimSAS
    • Number of storage drives supported: 10
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • USB 3.2 Gen 2x2 connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 2
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • RGB LED pin header: Yes
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
    • USB4 Gen 3x2 ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 2
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • S/PDIF out port: Yes
    • WiFi-AP antenna jack: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 10 Gigabit Ethernet/5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x16 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 5.x) slots: 2
    • Number of M.2 (M) slots: 5
    • 1st M.2 largest key size: 22110
    • 1st M.2 highest PCI Express generation: 5.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 5.0
    • 3rd M.2 largest key size: 22110
    • 3rd M.2 highest PCI Express generation: 5.0
    • 4th M.2 largest key size: 22110
    • 4th M.2 highest PCI Express generation: 4.0
    • 5th M.2 largest key size: 22110
    • 5th M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 512
    • Package width: 380
    • Package depth: 320
    • Package height: 125
    • Package weight: 5661
    • Width: 305
    • Depth: 277
    • Antenna included: Yes
    • Cables included: SATA
    • Drivers included: Yes
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01581
    • Unit Calculated Weight: 4
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 5.0
    1st M.2 largest key size 22110
    2nd M.2 highest PCI Express generation 5.0
    2nd M.2 largest key size 2280
    3rd M.2 highest PCI Express generation 5.0
    3rd M.2 largest key size 22110
    4th M.2 highest PCI Express generation 4.0
    4th M.2 largest key size 22110
    5th M.2 highest PCI Express generation 4.0
    5th M.2 largest key size 22110
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC4082
    Audio output channels 7.1
    BIOS memory size 512
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Cables included SATA
    Category Code MBA
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    CPU fan connector Yes
    Depth 277
    Description

    ROG Crosshair X870E Extreme
    The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

    ASUS AI CACHE BOOST
    Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzenâ„¢ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
    Drivers included Yes
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 10 Gigabit Ethernet/5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 2
    Front panel audio connector Yes
    Front panel connector Yes
    HDMI ports quantity 1
    Maximum internal memory 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Model ROG CROSSHAIR X870E EXTREME
    Motherboard chipset AMD X870E
    Motherboard chipset family AMD
    Motherboard form factor Extended ATX
    Name MB AMD X870E SAM5 EATX/CROSSHAIR X870E EXTREME ASUS
    Number of chassis fan connectors 2
    Number of M.2 (M) slots 5
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 10
    Package depth 320
    Package height 125
    Package weight 5661
    Package width 380
    Parallel processing technology support Not supported
    PCI Express x16 (Gen 4.x) slots 2
    PCI Express x16 (Gen 5.x) slots 2
    PictureUrl https://static.elko.cloud/ProductImages/465b4703-77fb-410a-a03b-4a04da27c9e1.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Black
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out port Yes
    Summary ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III,SlimSAS
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/465b4703-77fb-410a-a03b-4a04da27c9e1.Jpeg
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.01581
    Unit Calculated Weight 4
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 8
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
    USB 3.2 Gen 2x2 connectors 1
    USB4 Gen 3x2 ports quantity 2
    Vendor Homepage https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 1
    Windows operating systems supported Windows 11
