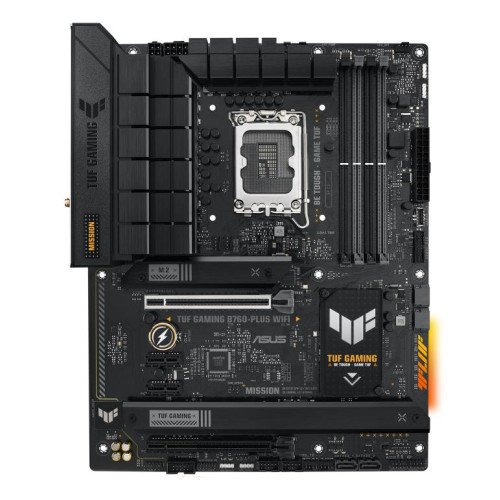

TUF GAMING B760-PLUS WIFI

Technical Specifications

• Summary: ASUS TUF Gaming B760-Plus WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760-plus-wifi/
• Name: MB B760 S1700 ATX/TUF GAMING B760-PLUS WIFI ASUS
• Category Code: MBI
• Model: TUF GAMING B760-PLUS WIFI
• Motherboard chipset: Intel B760
• Product colour: Black
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Cooling type: Passive
• Motherboard chipset family: Intel
• Power source type: ATX
• Windows operating systems supported: Windows 10/Windows 11
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Compatible processor series: Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7
• Maximum number of SMP processors: 1
• Supported processor sockets: LGA 1700
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speed (max): 5066
• Maximum internal memory: 128
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,PCI Express 3.0,PCI Express 5.0,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0/1/10/5
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 3
• Peripheral (Molex) power connectors (4-pin): 1
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• Number of COM connectors: 1
• Thunderbolt headers: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.2
• PCI Express x1 (Gen 3.x) slots: 2
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• PCI slots: 4
• Number of M.2 (M) slots: 3
• BIOS type: UEFI AMI
• BIOS memory size: 128
• Package width: 328
• Package depth: 266
• Package height: 53
• Package weight: 1160
• Width: 305
• Depth: 244
• Cables included: SATA
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006834
• Unit Calculated Weight: 1.77
