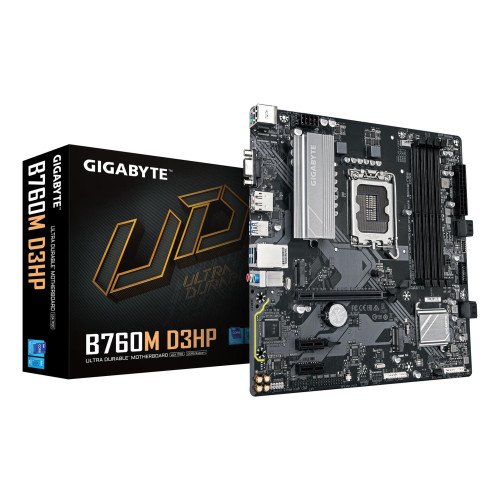

B760M D3HP

B760M D3HP
B760M D3HP
  • Motherboard chipset: Intel B760 Express
  • Motherboard form factor: micro ATX
  • Processor socket: LGA 1700
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
  • 6,389ден.
    • Достапност: Има залиха
    • Шифра: 433076
    • Гарантен рок: 12 месеци
    • Рок на испорака: 22.03
    Сподели

    Technical Specifications

    • Summary: GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB B760 S1700 MATX/B760M D3HP 1.0 GIGABYTE
    • Category Code: MBI
    • Model: B760M D3HP
    • Motherboard chipset: Intel B760 Express
    • Product colour: Brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: Intel
    • Power source type: ATX
    • Windows operating systems supported: Windows 10/Windows 11
    • Processor manufacturer: Intel
    • Processor socket: LGA 1700
    • Compatible processor series: Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron
    • Supported processor sockets: LGA 1700
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speeds: 4400/4800/5200/5600
    • Supported memory clock speed (max): 5600
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 64
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2304
    • HDCP: Yes
    • DirectX version: 12.0
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 3
    • EPS power connector (8-pin): Yes
    • Number of EPS power connectors (8-pin): 1
    • 12V power connector: Yes
    • Parallel connector: Yes
    • Serial port headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 2
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • VGA (D-Sub) ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 1
    • DisplayPort version: 1.2
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • LAN controller: Realtek RTL8111H
    • PCI Express x1 (Gen 3.x) slots: 2
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 2
    • 1st M.2 largest key size: 2280
    • 1st M.2 highest PCI Express generation: 4.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 270
    • Number of battery cells: 1
    • Package depth: 268
    • Package height: 68
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1210
    • Battery type: CR2032
    • Width: 244
    • Depth: 244
    • Height: 35
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security
    • Weight: 720
    • Warranty period: 3
    • Units per Shipping Box: 10
    • Unit Calculated Volume: 0.004783
    • Unit Calculated Weight: 0.985
