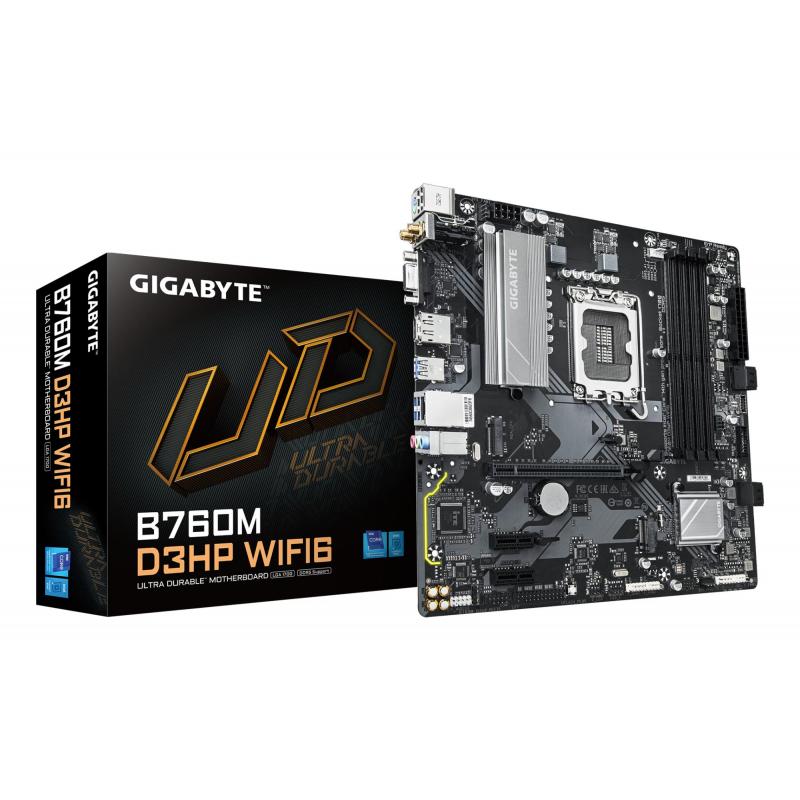

B760M D3HP WIFI6

B760M D3HP WIFI6
B760M D3HP WIFI6
  • Motherboard chipset: Intel B760 Express
  • Motherboard form factor: micro ATX
  • Processor socket: LGA 1700
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
    • Врз основа на 0 коментари. - Напиши коментар
    7,328ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 435975
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB B760 S1700 MATX/B760M D3HP WIFI6 1.0 GIGABYTE
    • Category Code: MBI
    • Model: B760M D3HP WIFI6
    • Motherboard chipset: Intel B760 Express
    • Audio chip: Realtek ALC897
    • Product colour: Dark brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Cooling type: Passive
    • Motherboard chipset family: Intel
    • Power source type: ATX
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: Intel
    • Processor socket: LGA 1700
    • Compatible processor series: Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron
    • Supported processor sockets: LGA 1700
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speeds: 4400/4800/5200/5600
    • Supported memory clock speed (max): 5600
    • Maximum internal memory: 192
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 48
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2304
    • HDCP: Yes
    • DirectX version: 12.0
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 3
    • EPS power connector (8-pin): Yes
    • Number of EPS power connectors (8-pin): 1
    • 12V power connector: Yes
    • Parallel connector: Yes
    • Serial port headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 2
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • VGA (D-Sub) ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 1
    • DisplayPort version: 1.2
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • WiFi-AP antenna jack: 2
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • LAN controller: Realtek RTL8111H
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    • Wi-Fi standards: Wi-Fi 6 (802.11ax)
    • WLAN controller model: Realtek RTL8851BE
    • Bluetooth: Yes
    • Bluetooth version: 5.3
    • PCI Express x1 (Gen 3.x) slots: 2
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 2
    • 1st M.2 largest key size: 2280
    • 1st M.2 highest PCI Express generation: 4.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 265
    • Package height: 54
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1200
    • Battery type: CR2032
    • Width: 244
    • Depth: 244
    • Height: 35
    • Antenna included: Yes
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
    • Weight: 1110
    • Warranty period: 3
    • Units per Shipping Box: 10
    • Unit Calculated Volume: 0.006195
    • Unit Calculated Weight: 1.2
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 4.0
    1st M.2 largest key size 2280
    2nd M.2 highest PCI Express generation 4.0
    2nd M.2 largest key size 2280
    ACPI version 5.0
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC897
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 128
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.3
    Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
    Category Code MBI
    Clear CMOS jumper Yes
    Compatible processor series Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
    Component for PC
    Cooling type Passive
    CPU fan connector Yes
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • Supports Intel Core 14th/ 13th /12th processors
    • Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
    • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
    • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
    • Fast Networks: GbE LAN & Wi-Fi 6 802.11ax
    • Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub
    • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DisplayPort version 1.2
    DisplayPorts quantity 1
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 1
    Height 35
    LAN controller Realtek RTL8111H
    Line-in Yes
    Lithium weight per battery 0.07
    Maximum internal memory 192
    Maximum internal memory per slot 48
    Maximum resolution 4096 x 2304
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model B760M D3HP WIFI6
    Motherboard chipset Intel B760 Express
    Motherboard chipset family Intel
    Motherboard form factor micro ATX
    Name MB B760 S1700 MATX/B760M D3HP WIFI6 1.0 GIGABYTE
    Number of battery cells 1
    Number of chassis fan connectors 3
    Number of CPU fan connectors 1
    Number of EPS power connectors (8-pin) 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 2
    Number of memory slots 4
    Number of RGB LED pin headers 2
    Number of SATA III connectors 4
    Number of storage drives supported 6
    Package depth 265
    Package height 54
    Package weight 1200
    Package width 265
    Parallel connector Yes
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage/Water cooling
    PCI Express x1 (Gen 3.x) slots 2
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/d4ff1ea0-0cd9-4b5d-8b6c-2dce0b48985c.Jpeg
    Power source type ATX
    Processor manufacturer Intel
    Processor socket LGA 1700
    Product colour Dark brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out connector Yes
    Screws included Yes
    Serial port headers 1
    Summary GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    Supported memory clock speed (max) 5600
    Supported memory clock speeds 4400/4800/5200/5600
    Supported memory types DDR5-SDRAM
    Supported processor sockets LGA 1700
    Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/d4ff1ea0-0cd9-4b5d-8b6c-2dce0b48985c.Jpeg
    Top Wi-Fi standard Wi-Fi 6 (802.11ax)
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.006195
    Unit Calculated Weight 1.2
    Units per Shipping Box 10
    USB 2.0 connectors 2
    USB 2.0 ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
    Vendor Homepage https://www.gigabyte.com/
    VGA (D-Sub) ports quantity 1
    Warranty period 3
    Weight 1110
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 6 (802.11ax)
    Width 244
    WiFi-AP antenna jack 2
    Windows operating systems supported Windows 10 x64/Windows 11 x64
    WLAN controller model Realtek RTL8851BE
