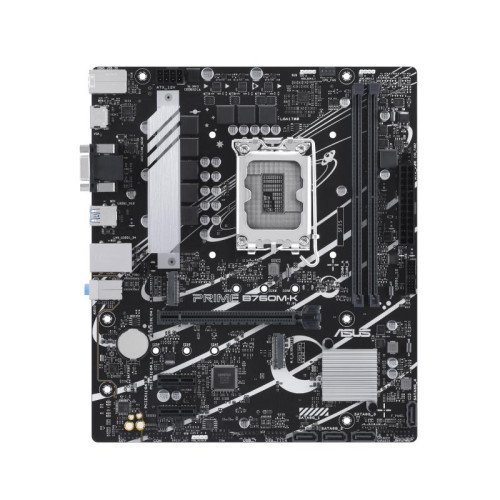

PRIME B760M-K

PRIME B760M-K
PRIME B760M-K
  • Motherboard chipset: Intel B760
  • Motherboard form factor: micro ATX
  • Processor socket: LGA 1700
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Number of storage drives supported: 6
    • Врз основа на 0 коментари. - Напиши коментар
    6,965ден.
    • Достапност: Има залиха
    • Шифра: 412370
    • Гарантен рок: 12 месеци
    • Рок на испорака: 13-16 дена
    ASUS
    Во кошничка
    Листа на желби Спореди
    Сподели

    Technical Specifications

    • Summary: ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
    • Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
    • Name: MB B760 S1700 MATX/PRIME B760M-K ASUS
    • Category Code: MBI
    • Model: PRIME B760M-K
    • Motherboard chipset: Intel B760
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: Intel
    • Windows operating systems supported: Windows 10 x64/Windows 11
    • Processor manufacturer: Intel
    • Processor socket: LGA 1700
    • Compatible processor series: Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
    • Maximum number of SMP processors: 1
    • Supported processor sockets: LGA 1700
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 2
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000
    • Supported memory clock speed (max): 8000
    • Maximum internal memory: 96
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 1
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of COM connectors: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • VGA (D-Sub) ports quantity: 1
    • HDMI ports quantity: 1
    • S/PDIF out port: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • PCI Express x1 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 2
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • Package width: 270
    • Package depth: 263
    • Package height: 51.5
    • Package weight: 1015
    • Width: 244
    • Depth: 211
    • Cables included: SATA
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.003577
    • Unit Calculated Weight: 1
