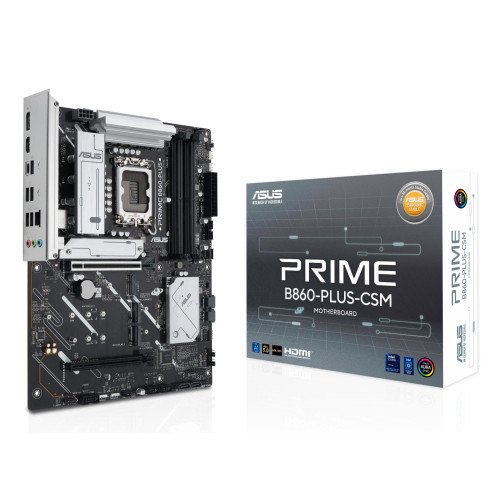

PRIME B860-PLUS-CSM

PRIME B860-PLUS-CSM
PRIME B860-PLUS-CSM
  • Motherboard chipset: Intel B860
  • Motherboard form factor: ATX
  • Processor socket: LGA 1851 (Socket V1)
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 7
    • Врз основа на 0 коментари. - Напиши коментар
    11,635ден.
    • Достапност: Има залиха
    • Бренд: ASUS
    • Шифра: 449711
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    • Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/csm/prime-b860-plus-csm/
    • Name: MB B860 S1851 ATX/PRIME B860-PLUS-CSM ASUS
    • Category Code: MBI
    • Model: PRIME B860-PLUS-CSM
    • Motherboard chipset: Intel B860
    • Product colour: Multicolour
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: Intel
    • Windows operating systems supported: Windows 10 x64/Windows 11
    • Processor manufacturer: Intel
    • Processor socket: LGA 1851 (Socket V1)
    • Compatible processor series: Intel Core Ultra (Series 2)
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speed (max): 8666
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 7
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 4
    • Chassis intrusion connector: Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of COM connectors: 1
    • Thunderbolt headers: 1
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
    • USB 3.2 Gen 2x2 Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • HDMI ports quantity: 1
    • DisplayPorts quantity: 1
    • Line-in: Yes
    • Microphone in: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 3
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • Package width: 377
    • Package depth: 372
    • Package height: 302
    • Package weight: 1558
    • Width: 305
    • Depth: 244
    • Height: 49
    • Weight: 896
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.00777
    • Unit Calculated Weight: 1
    Specs
    12V power connector Yes
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    BIOS memory size 256
    BIOS type UEFI AMI
    Category Code MBI
    Chassis intrusion connector Yes
    Compatible processor series Intel Core Ultra (Series 2)
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    Prime B860-PLUS-CSM
    ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
    DisplayPorts quantity 1
    ECC сompatibility Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    HDMI ports quantity 1
    Height 49
    Line-in Yes
    Maximum internal memory 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model PRIME B860-PLUS-CSM
    Motherboard chipset Intel B860
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Name MB B860 S1851 ATX/PRIME B860-PLUS-CSM ASUS
    Number of chassis fan connectors 4
    Number of COM connectors 1
    Number of CPU fan connectors 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 3
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 7
    Package depth 372
    Package height 302
    Package weight 1558
    Package width 377
    Parallel processing technology support Not supported
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/d9749f45-9c92-4b32-9341-d69176b92297.Jpeg
    Processor manufacturer Intel
    Processor socket LGA 1851 (Socket V1)
    Product colour Multicolour
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out connector Yes
    Summary ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    Supported memory clock speed (max) 8666
    Supported memory types DDR5-SDRAM
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/d9749f45-9c92-4b32-9341-d69176b92297.Jpeg
    Thunderbolt headers 1
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.00777
    Unit Calculated Weight 1
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
    USB 3.2 Gen 2x2 Type-C ports quantity 1
    Vendor Homepage https://www.asus.com/motherboards-components/motherboards/csm/prime-b860-plus-csm/
    Weight 896
    Width 305
    Windows operating systems supported Windows 10 x64/Windows 11
