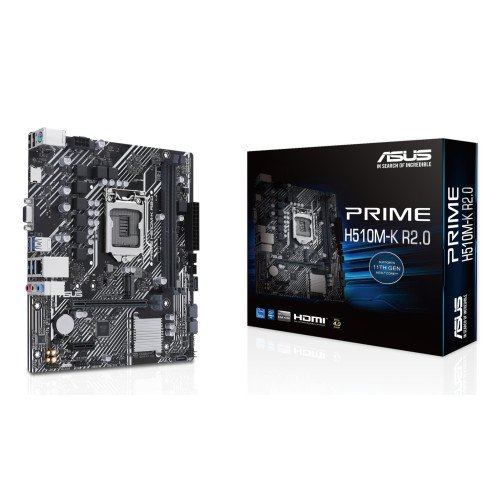

PRIME H510M-K R2.0

Technical Specifications

• Summary: ASUS PRIME H510M-K R2.0. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
• Vendor Homepage: www.asus.com/motherboards-components/motherboards/prime/prime-h510m-k-r2-0/techspec/
• Name: MB H470 S1200 MATX/PRIME H510M-K R2.0 ASUS
• Category Code: MBI
• Model: PRIME H510M-K R2.0
• Motherboard chipset: Intel H510
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 10 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1200 (Socket H5)
• Compatible processor series: Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 2133/2400/2666/2800/2933/3000/3200
• Maximum internal memory: 64
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 5
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 1
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• TPM connector: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• COM ports quantity: 1
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• PCI Express x1 (Gen 3.x) slots: 1
• Number of M.2 (M) slots: 1
• BIOS type: EFI AMI
• BIOS memory size: 128
• Width: 226
• Depth: 203
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003577
• Unit Calculated Weight: 0.9
