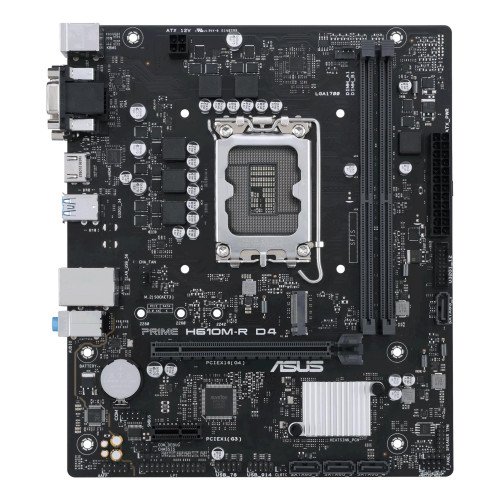

PRIME H610M-R D4-SI

Technical Specifications

• Summary: ASUS PRIME H610M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
• Vendor Homepage: https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
• Name: MB H610 S1700 MATX/PRIME H610M-R D4-SI ASUS
• Category Code: MBI
• Model: PRIME H610M-R D4-SI
• Motherboard chipset: Intel H610
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Compatible processor series: Intel Pentium G/Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
• Supported processor sockets: LGA 1700
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 2133/2400/2666/2800/2933/3000/3200
• Maximum internal memory: 64
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 5
• Parallel processing technology support: Not supported
• Maximum resolution: 3840 x 2160
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Audio connector: Yes
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 1
• Chassis intrusion connector: Yes
• 12V power connector: Yes
• Number of COM connectors: 1
• TPM connector: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 2
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DVI-D ports quantity: 1
• Headphone outputs: 3
• Microphone in: Yes
• USB connector type: USB Type-A
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Wake-on-LAN ready: Yes
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 128
• Clear CMOS jumper: Yes
• Harmonized System (HS) code: 84733020
• Width: 226
• Depth: 193
• Height: 51
• Cables included: SATA
• Drivers included: Yes
• Weight: 842
• Unit Calculated Volume: 0.002875
• Unit Calculated Weight: 0.78
