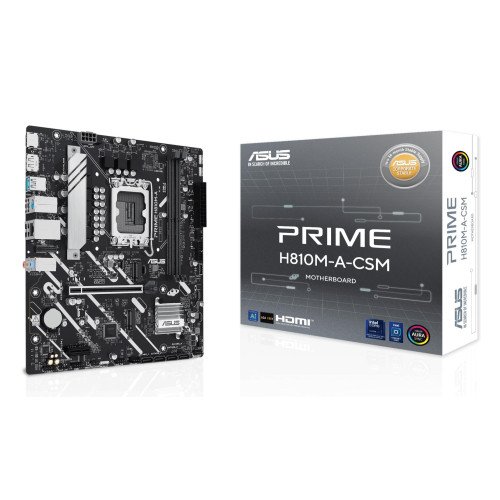

MB H810 S1851 MATX/PRIME H810M-A-CSM ASUS

Technical Specifications

• Summary: ASUS PRIME H810M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I219V. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/csm/prime-h810m-a-csm/
• Name: MB H810 S1851 MATX/PRIME H810M-A-CSM ASUS
• Category Code: MBI
• Motherboard chipset: Intel H810
• Product colour: Black
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Power source type: ATX
• Windows operating systems supported: Windows 10 x64/Windows 11
• Processor manufacturer: Intel
• Processor socket: LGA 1851 (Socket V1)
• Compatible processor series: Intel Core Ultra (Series 2)
• Supported processor sockets: LGA 1851
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speed (max): 6400
• Maximum internal memory: 128
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 6
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of chassis fan connectors: 2
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• Number of COM connectors: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Line-in: Yes
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• LAN controller: Intel I219V
• Wake-on-LAN ready: Yes
• PCI Express x1 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• 1st M.2 largest key size: 2280
• 1st M.2 highest PCI Express generation: 4.0
• 2nd M.2 largest key size: 2280
• 2nd M.2 highest PCI Express generation: 4.0
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Package width: 270
• Package depth: 263
• Package height: 51.5
• Package weight: 782
• Width: 244
• Depth: 222
• Height: 37
• Weight: 534
• Number of M.2 (E) slots: 1
