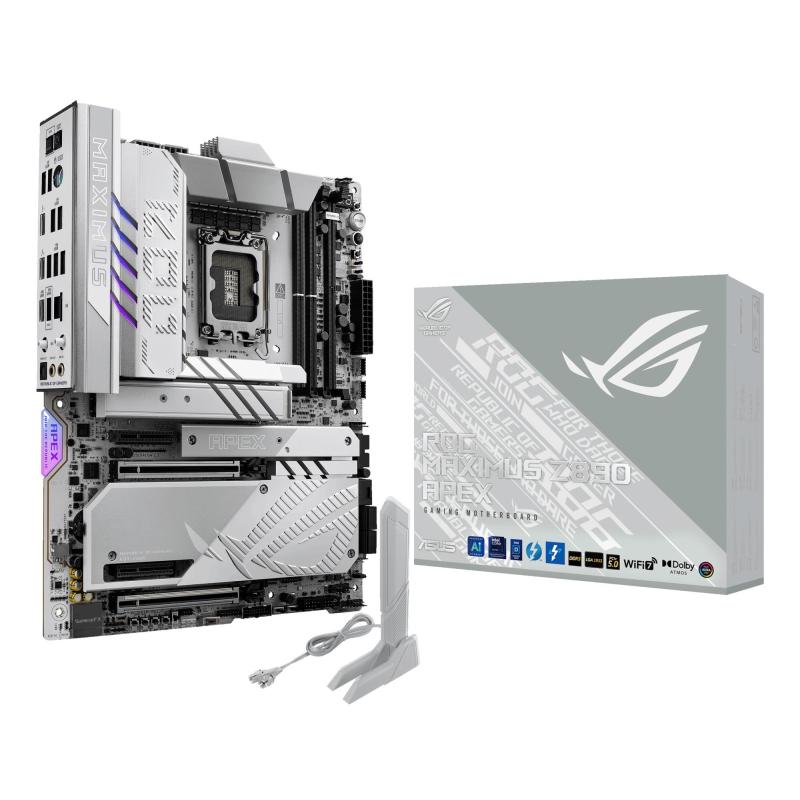

MB Z890 S1851 ATX/ROG MAXIMUS Z890 APEX ASUS

MB Z890 S1851 ATX/ROG MAXIMUS Z890 APEX ASUS
MB Z890 S1851 ATX/ROG MAXIMUS Z890 APEX ASUS
  • Motherboard chipset: Intel Z890
  • Motherboard form factor: ATX
  • Processor socket: LGA 1851 (Socket V1)
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Number of storage drives supported: 10
    • Врз основа на 0 коментари. - Напиши коментар
    35,564ден.
    • Достапност: Има залиха
    • Бренд: ASUS
    • Шифра: 462858
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS ROG MAXIMUS Z890 APEX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    • Vendor Homepage: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-apex/
    • Name: MB Z890 S1851 ATX/ROG MAXIMUS Z890 APEX ASUS
    • Category Code: MBI
    • Motherboard chipset: Intel Z890
    • Audio chip: Realtek ALC4080
    • Product colour: Aluminium
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: Intel
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: Intel
    • Processor socket: LGA 1851 (Socket V1)
    • Compatible processor series: Intel Core Ultra (Series 2)
    • Supported processor sockets: LGA 1851
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 2
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Maximum internal memory: 96
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 10
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • USB 3.2 Gen 2x2 connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 2
    • 12V power connector: Yes
    • Thunderbolt headers: 1
    • RGB LED pin header: Yes
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
    • USB 3.2 Gen 2x2 Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • Microphone in: Yes
    • S/PDIF out port: Yes
    • Thunderbolt ports quantity: 2
    • WiFi-AP antenna jack: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x4 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 5.x) slots: 2
    • Number of M.2 (M) slots: 6
    • BIOS type: UEFI AMI
    • BIOS memory size: 512
    • Clear CMOS button: Yes
    • Package width: 370
    • Package depth: 312
    • Package height: 108
    • Package weight: 3700
    • Width: 305
    • Depth: 244
    • Screws included: Yes
    • Drivers included: Yes
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01319
    • Unit Calculated Weight: 3.7
    Specifications
    ECC сompatibility Non-ECC
    Specs
    12V power connector Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC4080
    Audio output channels 7.1
    BIOS memory size 512
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Category Code MBI
    Clear CMOS button Yes
    Compatible processor series Intel Core Ultra (Series 2)
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    ROG Maximus Z890 APEX
    The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
    Drivers included Yes
    Ethernet interface type 5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Maximum internal memory 96
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Motherboard chipset Intel Z890
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Name MB Z890 S1851 ATX/ROG MAXIMUS Z890 APEX ASUS
    Number of chassis fan connectors 2
    Number of HDDs supported 4
    Number of M.2 (M) slots 6
    Number of memory slots 2
    Number of SATA III connectors 4
    Number of storage drives supported 10
    Package depth 312
    Package height 108
    Package weight 3700
    Package width 370
    Parallel processing technology support Not supported
    PCI Express x16 (Gen 5.x) slots 2
    PCI Express x4 (Gen 4.x) slots 2
    PictureUrl https://static.elko.cloud/ProductImages/ec13a569-9f24-4af9-8882-0825dd38c5bc.Jpeg
    Processor manufacturer Intel
    Processor socket LGA 1851 (Socket V1)
    Product colour Aluminium
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out port Yes
    Screws included Yes
    Summary ASUS ROG MAXIMUS Z890 APEX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    Supported memory types DDR5-SDRAM
    Supported processor sockets LGA 1851
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/ec13a569-9f24-4af9-8882-0825dd38c5bc.Jpeg
    Thunderbolt headers 1
    Thunderbolt ports quantity 2
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.01319
    Unit Calculated Weight 3.7
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
    USB 3.2 Gen 2x2 connectors 1
    USB 3.2 Gen 2x2 Type-C ports quantity 1
    Vendor Homepage https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-apex/
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 1
    Windows operating systems supported Windows 11
