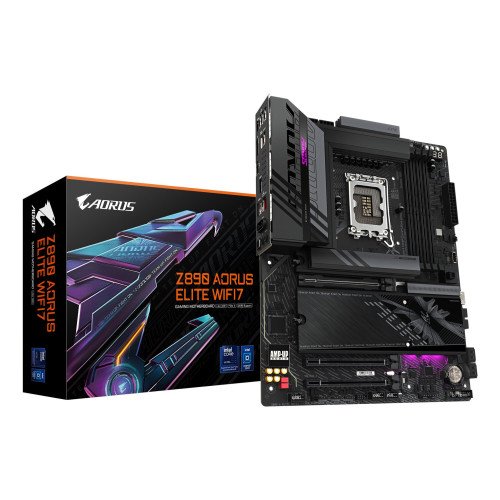

Z890 A ELITE WIFI7

Technical Specifications

• Summary: GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://www.gigabyte.com/
• Name: MB Z890 S1851 ATX/Z890 A ELITE WIFI7 GIGABYTE
• Category Code: MBI
• Model: Z890 A ELITE WIFI7
• Motherboard chipset: Intel Z890
• Audio chip: Realtek ALC1220
• Product colour: Black
• PC health monitoring: Fan/Temperature/Voltage
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 11 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1851 (Socket V1)
• Compatible processor series: Intel Core Ultra (Series 2)
• Supported processor sockets: LGA 1851
• Maximum internal memory supported by processor: 256
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800
• Supported memory clock speed (max): 8800
• Maximum internal memory: 256
• Supported memory module capacities: 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 8
• Number of storage drives supported: 4
• RAID support: Yes
• RAID levels: 0/1/10/5
• DirectX version: 12.0
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• ATX Power connector (24-pin): Yes
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• 12V power connector: Yes
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 2
• Microphone in: Yes
• S/PDIF out port: Yes
• Thunderbolt ports quantity: 1
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• WLAN controller model: MediaTek MT7925
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 4.x) slots: 2
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 4
• BIOS type: UEFI AMI
• BIOS memory size: 256
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Clear CMOS button: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 335
• Number of battery cells: 1
• Package depth: 270
• Package height: 80
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 2500
• Battery type: CR2032
• Width: 305
• Depth: 244
• Height: 35
• Batteries included: Yes
• Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
• Weight: 2230
• Warranty period: 3
• Units per Shipping Box: 6
• Unit Calculated Volume: 0.0101
• Unit Calculated Weight: 2.52
