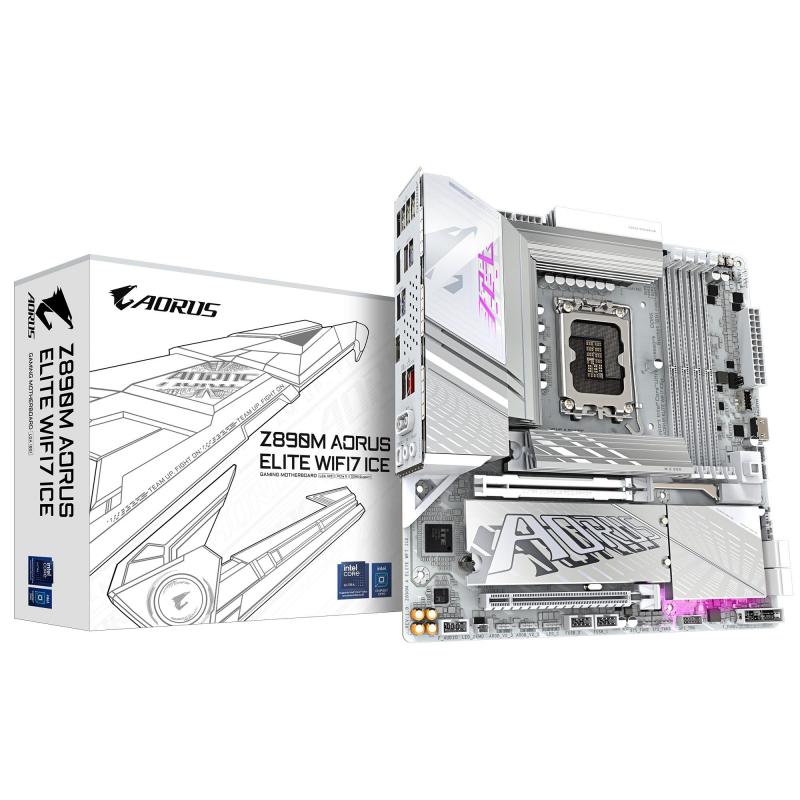

Z890M A ELITE WF7 ICE

Z890M A ELITE WF7 ICE
Z890M A ELITE WF7 ICE
  • Motherboard chipset: Intel Z890
  • Motherboard form factor: ATX
  • Processor socket: LGA 1851 (Socket V1)
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 4
    • Врз основа на 0 коментари. - Напиши коментар
    15,319ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 425881
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE Z890M AORUS ELITE WIFI7 ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB Z890 S1851 ATX/Z890M A ELITE WF7 ICE GIGABYTE
    • Category Code: MBI
    • Model: Z890M A ELITE WF7 ICE
    • Motherboard chipset: Intel Z890
    • Product colour: White
    • PC health monitoring: Fan/Temperature/Voltage
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: Intel
    • Processor manufacturer: Intel
    • Processor socket: LGA 1851 (Socket V1)
    • Compatible processor series: Intel Core Ultra (Series 2)
    • Supported processor sockets: LGA 1851
    • Maximum internal memory supported by processor: 256
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • Supported memory clock speeds: 5600/5800/6000/6200/6600/6800/7200/7400/7600/7800/7900/7950/8000/8200/8400/8600
    • Supported memory clock speed (max): 8800
    • Maximum internal memory: 256
    • Supported memory module capacities: 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 7
    • Number of storage drives supported: 4
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • DirectX version: 12.0
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • Number of SATA III connectors: 4
    • Total number of SATA connectors: 4
    • ATX Power connector (24-pin): Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 1
    • HDMI ports quantity: 1
    • DisplayPorts quantity: 2
    • Microphone in: Yes
    • S/PDIF out port: Yes
    • Thunderbolt ports quantity: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • WLAN controller model: MediaTek MT7925
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • Number of M.2 (M) slots: 3
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Clear CMOS button: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 270
    • Number of battery cells: 1
    • Package depth: 268
    • Package height: 68
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1750
    • Battery type: CR2032
    • Width: 244
    • Depth: 244
    • Height: 35
    • Batteries included: Yes
    • Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
    • Weight: 1550
    • Warranty period: 3
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.005103
    • Unit Calculated Weight: 1.8
    Specs
    12V power connector Yes
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
    Category Code MBI
    Clear CMOS button Yes
    Clear CMOS jumper Yes
    Compatible processor series Intel Core Ultra (Series 2)
    Component for PC
    Country of origin China
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • Digital 12+1+2+1 Phases 60A Dr.MOS VRM with Tantalum Polymer Capacitor
    • Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
    • PCIe M.2 design (Up to 2580) with M.2 EZ-Latch Plus & Thermal Guard
    • Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
    • 2x2 Wi-Fi 7 with WIFI EZ-Plug Design
    • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DisplayPorts quantity 2
    EPS power connector (8-pin) Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    HDMI ports quantity 1
    Height 35
    Lithium weight per battery 0.07
    Maximum internal memory 256
    Maximum internal memory supported by processor 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model Z890M A ELITE WF7 ICE
    Motherboard chipset Intel Z890
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Name MB Z890 S1851 ATX/Z890M A ELITE WF7 ICE GIGABYTE
    Number of battery cells 1
    Number of HDDs supported 7
    Number of M.2 (M) slots 3
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 4
    Package depth 268
    Package height 68
    Package weight 1750
    Package width 270
    PC health monitoring Fan/Temperature/Voltage
    PictureUrl https://static.elko.cloud/ProductImages/97d2e1ac-414d-4bbb-a75f-654a478b9c5e.Jpeg
    Processor manufacturer Intel
    Processor socket LGA 1851 (Socket V1)
    Product colour White
    Products per shipping (inner) case 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out port Yes
    Summary GIGABYTE Z890M AORUS ELITE WIFI7 ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
    Supported memory clock speed (max) 8800
    Supported memory clock speeds 5600/5800/6000/6200/6600/6800/7200/7400/7600/7800/7900/7950/8000/8200/8400/8600
    Supported memory module capacities 12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
    Supported memory types DDR5-SDRAM
    Supported processor sockets LGA 1851
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/97d2e1ac-414d-4bbb-a75f-654a478b9c5e.Jpeg
    Thunderbolt ports quantity 1
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Total number of SATA connectors 4
    TPM connector Yes
    Unit Calculated Volume 0.005103
    Unit Calculated Weight 1.8
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
    Vendor Homepage https://www.gigabyte.com/
    Warranty period 3
    Weight 1550
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 244
    WLAN controller model MediaTek MT7925
