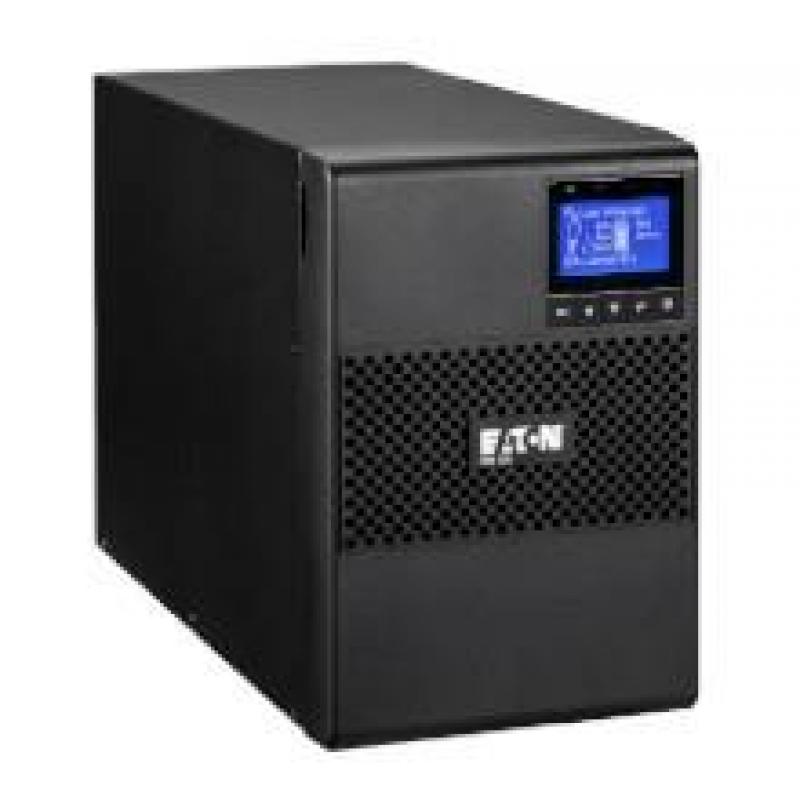

UPS TOWER 9SX 700I 700VA/630W 9SX700I EATON

UPS TOWER 9SX 700I 700VA/630W 9SX700I EATON
Нема на залиха
UPS TOWER 9SX 700I 700VA/630W 9SX700I EATON
  • UPS topology: Double-conversion (Online)
  • Output power: 630
    • Врз основа на 0 коментари. - Напиши коментар
    48,199ден.
    • Достапност: Нема на залиха
    • Бренд: EATON
    • Шифра: 253810
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 9SX700I. UPS topology: Double-conversion (Online), Output power capacity: 0.7 kVA, Output power: 630 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 14 min. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report...
    • Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9SX-upto-3kVA.aspx?cx=78
    • Name: UPS TOWER 9SX 700I 700VA/630W 9SX700I EATON
    • Category Code: UPW
    • UPS topology: Double-conversion (Online)
    • Output power capacity: 0.7
    • Output power: 630
    • Waveform: Pure sine
    • Input operation voltage (min): 120
    • Input operation voltage (max): 276
    • Input frequency: 40/70
    • Output operation voltage (min): 200
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Number of input phases: 1
    • Number of output phases: 1
    • Power factor: 0.9
    • Noise level: 40
    • AC outlet types: C13 coupler
    • Power plug: C14 coupler
    • AC outlets quantity: 6
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • Serial interface: Yes
    • RS-232 ports: 1
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at half load: 14
    • Hot-swap battery: Yes
    • Automatic battery test: Yes
    • Form factor: Mini Tower
    • Product colour: Black
    • Display type: LCD
    • Operating temperature (T-T): 0 - 40
    • Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
    • Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
    • Width: 160
    • Depth: 357
    • Height: 252
    • Weight: 11500
    • Bundled software: Intelligent Power Software suite
    • Harmonized System (HS) code: 85078000
    • Input connection type: IEC C14
    • Nominal input voltage: 230
    • Nominal output voltage: 230
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.025
    • Unit Calculated Weight: 13.5
    Specs
    AC outlet types C13 coupler
    AC outlets quantity 6
    Automatic battery test Yes
    Battery technology Sealed Lead Acid (VRLA)
    Bundled software Intelligent Power Software suite
    Category Code UPW
    Certification IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
    Depth 357
    Description

    Eaton 9SX (700VA-3kVA) UPS

    The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower format
    Display type LCD
    Form Factor Mini Tower
    Harmonized System (HS) code 85078000
    Height 252
    Hot-swap battery Yes
    Input connection type IEC C14
    Input frequency 40/70
    Input operation voltage (max) 276
    Input operation voltage (min) 120
    Name UPS TOWER 9SX 700I 700VA/630W 9SX700I EATON
    Noise level 40
    Nominal input voltage 230
    Nominal output voltage 230
    Number of input phases 1
    Number of output phases 1
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 200
    Output power 630
    Output power capacity 0.7
    PictureUrl https://static.elko.cloud/ProductImages/98187d31-4f82-43a3-a23f-efe57373ccef.Jpeg
    Power factor 0.9
    Power plug C14 coupler
    Product colour Black
    RS-232 ports 1
    Safety IEC/EN 62040-1, UL 1778, CSA 22.2
    Serial interface Yes
    Summary Eaton 9SX700I. UPS topology: Double-conversion (Online), Output power capacity: 0.7 kVA, Output power: 630 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 14 min. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report...
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/98187d31-4f82-43a3-a23f-efe57373ccef.Jpeg
    Typical backup time at half load 14
    Unit Calculated Volume 0.025
    Unit Calculated Weight 13.5
    Units per Shipping Box 1
    UPS topology Double-conversion (Online)
    USB 2.0 ports quantity 1
    USB port Yes
    Vendor Homepage https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9SX-upto-3kVA.aspx?cx=78
    Waveform Pure sine
    Weight 11500
    Width 160
