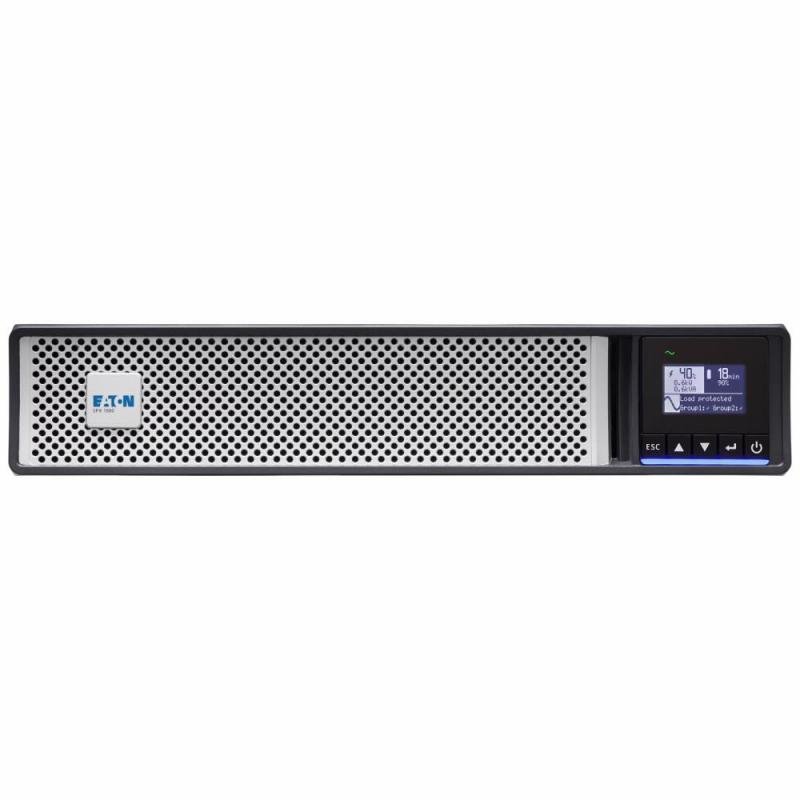

UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON

UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON
UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON
  • UPS topology: Line-Interactive
  • Output power: 1500
    • Врз основа на 0 коментари. - Напиши коментар
    79,563ден.
    • Достапност: Има залиха
    • Бренд: EATON
    • Шифра: 424510
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
    • Vendor Homepage: https://www.eaton.com/
    • Name: UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON
    • Category Code: UPW
    • UPS topology: Line-Interactive
    • Output power capacity: 1.5
    • Output power: 1500
    • Waveform: Pure sine
    • Input operation voltage (min): 160
    • Input operation voltage (max): 294
    • Input frequency: 47/70
    • Noise level: 40
    • Power protection features: Overdischarge
    • AC outlet types: C13 coupler
    • Power plug: C14 coupler
    • AC outlets quantity: 8
    • USB port: Yes
    • Serial interface: Yes
    • Serial interface type: RS-232
    • Serial ports quantity: 1
    • Cabling technology: 10/100/1000Base-T(X)
    • Hot-swap battery: Yes
    • Automatic battery test: Yes
    • Form factor: Rackmount/Tower
    • Rack capacity: 2U
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Compliance certificates: CE
    • Sustainability certificates: ENERGY STAR
    • Sustainability compliance: Yes
    • Safety: IEC/EN 62040-1, UL1778, CSA22.2
    • Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
    • Width: 438
    • Depth: 448
    • Height: 85.5
    • Weight: 22400
    • Management card included: Yes
    • Harmonized System (HS) code: 85078000
    • Nominal output voltage: 230
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.0708
    • Unit Calculated Weight: 24
    Specs
    AC outlet types C13 coupler
    AC outlets quantity 8
    Automatic battery test Yes
    Cabling technology 10/100/1000Base-T(X)
    Category Code UPW
    Certification IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
    Compliance certificates CE
    Depth 448
    Description

    Exceptional efficiency, manageability and energy metering capabilities for IT managers

    Performance and efficiency

    - Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
    - Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
    - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
    - Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

    Management and Cybersecurity

    - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
    - 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
    - Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
    - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
    - Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

    Availability and flexibility

    - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
    - 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
    - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
    - Up to 4 external hot-swappable battery modules can be added for longer power availability.
    Display type LCD
    Form Factor Rackmount/Tower
    Harmonized System (HS) code 85078000
    Height 85.5
    Hot-swap battery Yes
    Input frequency 47/70
    Input operation voltage (max) 294
    Input operation voltage (min) 160
    LED indicators Yes
    Management card included Yes
    Name UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON
    Noise level 40
    Nominal output voltage 230
    Operating temperature (T-T) 0 - 40
    Output power 1500
    Output power capacity 1.5
    PictureUrl https://static.elko.cloud/ProductImages/85a9e4bf-c375-4df9-ab54-104cf905b381.Jpeg
    Power plug C14 coupler
    Power protection features Overdischarge
    Product colour Black
    Rack capacity 2U
    Safety IEC/EN 62040-1, UL1778, CSA22.2
    Serial interface Yes
    Serial interface type RS-232
    Serial ports quantity 1
    Summary Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
    Sustainability certificates ENERGY STAR
    Sustainability compliance Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/85a9e4bf-c375-4df9-ab54-104cf905b381.Jpeg
    Unit Calculated Volume 0.0708
    Unit Calculated Weight 24
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB port Yes
    Vendor Homepage https://www.eaton.com/
    Waveform Pure sine
    Weight 22400
    Width 438
