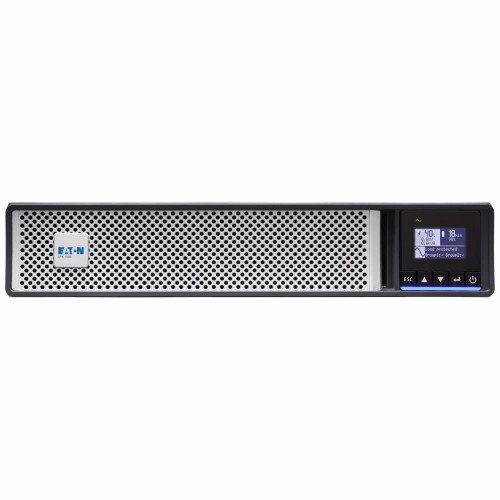

UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON

Technical Specifications

• Summary: Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
• Vendor Homepage: https://www.eaton.com/
• Name: UPS TOWER/RACK 5PX 2U 1500VA/1350W 5PX1500IRT2U EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 1.5
• Output power: 1500
• Waveform: Pure sine
• Input operation voltage (min): 160
• Input operation voltage (max): 294
• Input frequency: 47/70
• Noise level: 40
• Power protection features: Overdischarge
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 8
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Cabling technology: 10/100/1000Base-T(X)
• Hot-swap battery: Yes
• Automatic battery test: Yes
• Form factor: Rackmount/Tower
• Rack capacity: 2U
• Product colour: Black
• Display type: LCD
• LED indicators: Yes
• Operating temperature (T-T): 0 - 40
• Compliance certificates: CE
• Sustainability certificates: ENERGY STAR
• Sustainability compliance: Yes
• Safety: IEC/EN 62040-1, UL1778, CSA22.2
• Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
• Width: 438
• Depth: 448
• Height: 85.5
• Weight: 22400
• Management card included: Yes
• Harmonized System (HS) code: 85078000
• Nominal output voltage: 230
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0708
• Unit Calculated Weight: 24
