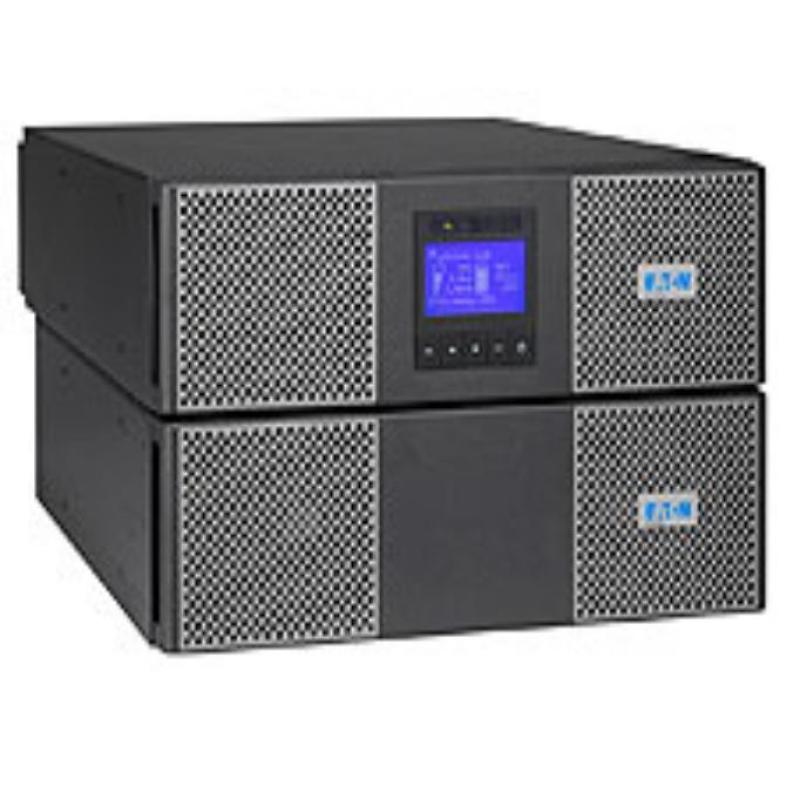

UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTNBP31 EATON

UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTNBP31 EATON
Нема на залиха
UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTNBP31 EATON
  • UPS topology: Double-conversion (Online)
  • Output power: 5400
  • Cooling type: Active
    • Врз основа на 0 коментари. - Напиши коментар
    391,360ден.
    • Достапност: Нема на залиха
    • Бренд: EATON
    • Шифра: 365763
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 9PX. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 30 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Certification: IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
    • Vendor Homepage: https://powerquality.eaton.com/9PX6KiRTNBP31.aspx?CX=149
    • Name: UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTNBP31 EATON
    • Category Code: UPW
    • UPS topology: Double-conversion (Online)
    • Output power capacity: 6
    • Output power: 5400
    • Waveform: Pure sine
    • Input operation voltage (min): 305
    • Input operation voltage (max): 480
    • Input frequency: 40/70
    • Output operation voltage (min): 200
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Number of input phases: 3
    • Efficiency: 94
    • Power factor: 0.9
    • Output voltage Total Harmonic Distortion (THD): 2
    • Input current Total Harmonic Distortion (THD): 5
    • Noise level: 48
    • AC outlet types: C19 coupler/Terminal
    • Power plug: Terminal
    • AC outlets quantity: 5
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • RS-232 ports: 1
    • Serial ports quantity: 1
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at half load: 30
    • Hot-swap battery: Yes
    • Automatic battery test: Yes
    • Form factor: Rackmount/Tower
    • Rack capacity: 6U
    • Cooling type: Active
    • Built-in fan: Yes
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Rack mount kit: Yes
    • Sustainability certificates: ENERGY STAR
    • Safety: IEC/EN 62040-1
    • Certification: IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
    • Width: 440
    • Depth: 700
    • Height: 260
    • Weight: 88000
    • Management card included: Yes
    • Bundled software: Intelligent Power Software suite
    • Harmonized System (HS) code: 85078000
    • Nominal input voltage: 400
    • Nominal output voltage: 230
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.5255
    • Unit Calculated Weight: 130
    Specs
    AC outlet types C19 coupler/Terminal
    AC outlets quantity 5
    Automatic battery test Yes
    Battery technology Sealed Lead Acid (VRLA)
    Built-in fan Yes
    Bundled software Intelligent Power Software suite
    Category Code UPW
    Certification IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
    Cooling type Active
    Depth 700
    Description

    The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
    Display type LCD
    Efficiency 94
    Form Factor Rackmount/Tower
    Harmonized System (HS) code 85078000
    Height 260
    Hot-swap battery Yes
    Input current Total Harmonic Distortion (THD) 5
    Input frequency 40/70
    Input operation voltage (max) 480
    Input operation voltage (min) 305
    LED indicators Yes
    Management card included Yes
    Name UPS TOWER/RACK 9PX 6000VA/5400W 9PX6KIRTNBP31 EATON
    Noise level 48
    Nominal input voltage 400
    Nominal output voltage 230
    Number of input phases 3
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 200
    Output power 5400
    Output power capacity 6
    Output voltage Total Harmonic Distortion (THD) 2
    PictureUrl https://static.elko.cloud/ProductImages/72409dc2-da95-42ed-8776-d2a0729698c2.Jpeg
    Power factor 0.9
    Power plug Terminal
    Product colour Black
    Rack capacity 6U
    Rack mount kit Yes
    RS-232 ports 1
    Safety IEC/EN 62040-1
    Serial ports quantity 1
    Summary Eaton 9PX. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 30 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Certification: IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
    Sustainability certificates ENERGY STAR
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/72409dc2-da95-42ed-8776-d2a0729698c2.Jpeg
    Typical backup time at half load 30
    Unit Calculated Volume 0.5255
    Unit Calculated Weight 130
    Units per Shipping Box 1
    UPS topology Double-conversion (Online)
    USB 2.0 ports quantity 1
    USB port Yes
    Vendor Homepage https://powerquality.eaton.com/9PX6KiRTNBP31.aspx?CX=149
    Waveform Pure sine
    Weight 88000
    Width 440
