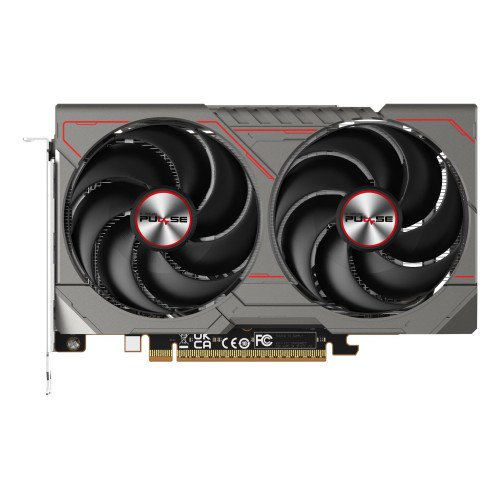

Radeon RX 9060 XT

Technical Specifications

• Summary: Sapphire PULSE Radeon RX 9060 XT. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-9060-xt-8g-m-gddr6
• Name: VGA PCIE16 RX9060XT 8GB GDDR6/PULSE 11350-05-20G SAPPHIRE
• Category Code: VGP
• Graphics processor family: AMD
• Graphics processor: Radeon RX 9060 XT
• Processor boost clock speed: 3130
• Processor boost clock speed (Gaming mode): 2530
• Maximum resolution: 7680 x 4320
• Compute units: 32
• AI accelerators: 64
• Infinity cache: 32
• Maximum displays per videocard: 3
• Parallel processing technology support: Not supported
• Ray accelerators: 32
• Stream processors: 2048
• Discrete graphics card memory: 8
• Graphics card memory type: GDDR6
• Memory bus: 128
• Data transfer rate: 20
• Interface type: PCI Express x16 5.0
• HDMI ports quantity: 2
• HDMI version: 2.1b
• DisplayPort version: 2.1a
• DisplayPorts quantity: 1
• DirectX version: 12 Ultimate
• AMD FreeSync: Yes
• Cooling type: Active
• Cooling technology: Sapphire Dual-X
• Number of fans: 2
• Number of slots: 2
• Product colour: Grey/White
• Minimum system power supply: 450
• Supplementary power connectors: 1x 8-pin
• Thermal Design Power (TDP): 150
• Windows operating systems supported: Windows 10/Windows 11
• Linux operating systems supported: Yes
• Minimum RAM: 8192
• Length: 200
• Depth: 40.6
• Height: 122
• Package type: Box
• Units per Pallet: 0
• Units per Shipping Box: 10
• Unit Calculated Volume: 0.00363
• Product Net Weight: 0.7
• Unit Calculated Weight: 0.873
