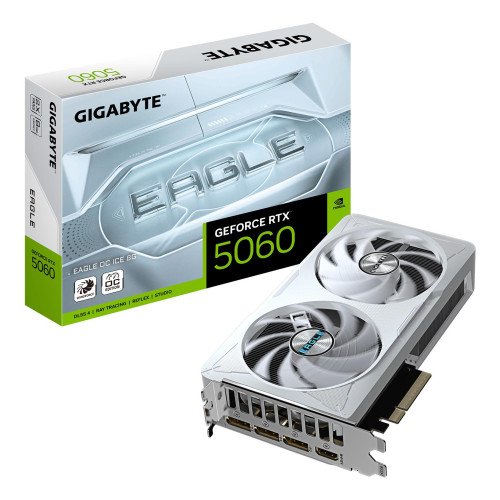

GeForce RTX 5060

Technical Specifications

• Summary: GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2550 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060EAGLEOC ICE-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2550 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
• Vendor Homepage: https://www.gigabyte.com/Graphics-Card/GV-N5060EAGLEOC-ICE-8GD
• Name: VGA PCIE16 RTX5060 8GB GDDR7/N5060EAGLEOC ICE-8GD GIGABYTE
• Category Code: VGP
• Graphics processor family: NVIDIA
• Graphics processor: GeForce RTX 5060
• Processor frequency: 2550
• Maximum resolution: 7680 x 4320
• CUDA: Yes
• CUDA cores: 3840
• Maximum displays per videocard: 4
• Parallel processing technology support: Not supported
• Discrete graphics card memory: 8
• Graphics card memory type: GDDR7
• Memory bus: 128
• Memory clock speed: 28000
• Data transfer rate: 28
• Interface type: PCI Express 5.0
• HDMI ports quantity: 1
• HDMI version: 2.1b
• DisplayPort version: 2.1b
• DisplayPorts quantity: 3
• DirectX version: 12.0
• OpenGL version: 4.6
• NVIDIA G-SYNC: Yes
• Overclocked (OC) edition: Yes
• Warranty period: 3
• Cooling type: Active
• Cooling technology: GIGABYTE WINDFORCE 2X
• Number of fans: 2
• Form factor: Full-Height/Half-Length (FH/HL)
• Number of slots: 2
• Product colour: White
• Minimum system power supply: 450
• Supplementary power connectors: 1x 8-pin
• Thermal Design Power (TDP): 109
• Weight: 540
• Length: 208
• Depth: 40
• Height: 120
• Package width: 235
• Package depth: 330
• Package height: 57
• Package weight: 880
• Package type: Box
• Products per shipping (inner) case: 1
• Model: GV-N5060EAGLEOC ICE-8GD
• Units per Shipping Box: 10
• Unit Calculated Volume: 0.0054486
• Product Net Weight: 0.67
• Unit Calculated Weight: 0.88
