Technical Specifications

• Description:

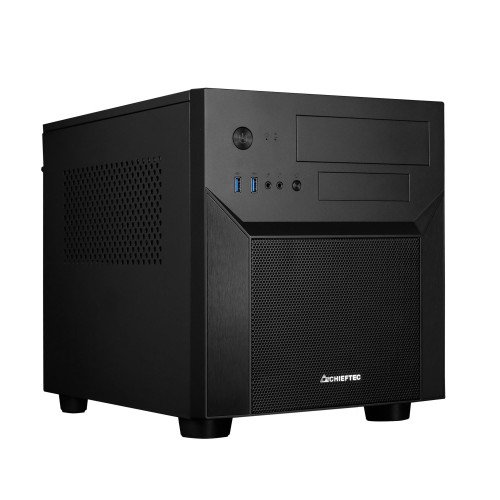

  The CI-02B-OP joins CHIEFTEC’s Mesh Series in a compact m-ATX cube format. Despite its very compact dimensions, this case is extremely flexible in terms of hardware compatibility, supporting ATX PSU’s up to 16cm in length, graphics cards up to 320mm in length and CPU coolers up to 160mm in height.

  Additionally, with lots of flexibility on the internal and external drives, supporting 5.25” and 3.5” optical drives, 2x 3.5” HDD”s and 3x 2.5” SSD’s, the CI-02B-OP is also very suitable for home entertainment purposes or as a mini server.

  Featuring an elegant design combining brushed aluminium and airflow-friendly mesh, this is a case has a timeless look that will it in easily in the workplace or at home and is therefore truly multi-functional.

  • Highly flexible optical drives, internal drives and fan configurations
  • Elegant design combining brushed aluminum and mesh features
  • Compact space saving dimensions
  • Innovative fold-open mechanism for easy installation

• Summary: Chieftec CI-02B-OP. Form factor: Cube, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 265 mm, Depth: 390 mm, Height: 295 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/491/CI-02B-OP
• Name: CASE CUBE MATX W/O PSU/CI-02B-OP CHIEFTEC
• Category Code: CAS
• Type: PC
• Form factor: Cube
• Product colour: Black
• Material: SPCC
• Supported motherboard form factors: micro ATX/Mini-ITX
• Number of 3.5" bays: 3
• Number of 5.25" bays: 1
• Number of 2.5" bays: 3
• Number of internal 3.5" bays: 2
• Number of external 5.25" bays: 1
• Full-Height expansion slots: 4
• Number of expansion slots: 4
• Side window: No
• Suitable for: Home/Office
• Anti-dust filter: Yes
• On/off button: Yes
• Reset button: Yes
• Maximum CPU cooler height: 160
• Maximum graphics card length: 320
• Maximum PSU length: 160
• Design features: CPU cooler height (max.)160mm; VGA card length (max.)320mm
• Power supply included: No
• Power supply location: Bottom
• Supported power supply form factors: ATX
• Audio input: Yes
• Audio output: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Number of front fans supported (max): 1
• Front fans diameters supported: 120/140
• Number of rear fans supported (max): 1
• Rear fans diameters supported: 120
• Number of top fans supported (max): 1
• Top fans diameters supported: 120/140
• Top radiator sizes supported: 120/140
• Supported HDD sizes: 3.5
• SSD form factor: 2.5"
• Width: 265
• Depth: 390
• Height: 295
• Weight: 4300
• Material thickness: 0.6
• Package weight: 5200
• Harmonized System (HS) code: 84733080
• Model: CI-02B-OP
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0504
• Unit Calculated Weight: 5
