Сите категории
Kошничка

Black

Black
Нема на залиха
Black
  • Form factor: Tower
  • Number of 3.5" bays: 1
  • Number of 2.5" bays: 4
  • Power supply included: No
    • Врз основа на 0 коментари. - Напиши коментар
    3,293ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 404113
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec BX-10B-OP. Form factor: Tower, Type: PC, Product colour: Black. Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 204 mm, Depth: 415 mm, Height: 325 mm. Package weight: 5.48 kg
    • Vendor Homepage: https://www.chieftec.eu/products-detail/538/BX-10B-OP
    • Name: CASE MINITOWER MATX W/O PSU/BX-10B-OP CHIEFTEC
    • Category Code: CAS
    • Type: PC
    • Form factor: Tower
    • Product colour: Black
    • Material: Carbon steel/SPCC
    • Supported motherboard form factors: micro ATX/Mini-ITX
    • Number of 3.5" bays: 1
    • Number of 2.5" bays: 4
    • Full-Height expansion slots: 4
    • Number of expansion slots: 4
    • Side window: Yes
    • Tempered glass panel(s): Yes
    • Anti-dust filter: Yes
    • On/off button: Yes
    • Maximum CPU cooler height: 165
    • Maximum graphics card length: 380
    • Design features: CPU cooler height (max.)165mm; VGA card length (max.)380mm (300mm, if PSU longer than 180mm installed)
    • Cooling & Ventilation System: Rear: 1x 120mm pre-installed
    • Audio output: Yes
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
    • Rear fans installed: 1x 120 mm
    • Number of rear fans supported (max): 1
    • Rear fans diameters supported: 120
    • Number of top fans supported (max): 2
    • Top fans diameters supported: 120/140
    • Number of bottom fans supported (max): 3
    • Bottom fans diameters supported: 120/140
    • Liquid cooling capability: Yes
    • Top radiator sizes supported: 240
    • Supported HDD sizes: 2.5/3.5
    • Compliance certificates: CE/RoHS
    • Sustainability compliance: Yes
    • Warranty period: 2
    • Width: 204
    • Depth: 415
    • Height: 325
    • Weight: 4780
    • Material thickness: 0.6
    • Package weight: 5480
    • Model: BX-10B-OP
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.04838
    • Unit Calculated Weight: 5
    Specifications
    Number of 2.5\" bays 4
    Number of 3.5\" bays 1
    Specs
    Anti-dust filter Yes
    Audio output Yes
    Bottom fans diameters supported 120/140
    Category Code CAS
    Compliance certificates CE/RoHS
    Cooling & Ventilation System Rear: 1x 120mm pre-installed
    Depth 415
    Description

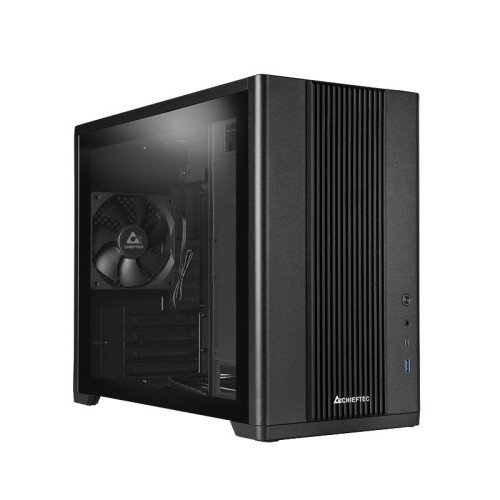

    The CHIEFTEC BX-10B-OP is a modern, compact mini tower that combines elegant and subtle design with high functionality and easy-installation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-OP from a space or cooling perspective.

    • Compact, modern m-ATX tower
    • Optimal cooling compatibility
    • Support 240mm radiator
    • 1x 120mm PWM fan pre-installed
    Design features CPU cooler height (max.)165mm; VGA card length (max.)380mm (300mm, if PSU longer than 180mm installed)
    Form Factor Tower
    Full-Height expansion slots 4
    Height 325
    Liquid cooling capability Yes
    Material Carbon steel/SPCC
    Material thickness 0.6
    Maximum CPU cooler height 165
    Maximum graphics card length 380
    Model BX-10B-OP
    Name CASE MINITOWER MATX W/O PSU/BX-10B-OP CHIEFTEC
    Number of bottom fans supported (max) 3
    Number of expansion slots 4
    Number of rear fans supported (max) 1
    Number of top fans supported (max) 2
    On/off button Yes
    Package weight 5480
    PictureUrl https://static.elko.cloud/ProductImages/648fa6d2-8f29-43ea-b361-e78e9910c59f.Jpeg
    Product colour Black
    Rear fans diameters supported 120
    Rear fans installed 1x 120 mm
    Side window Yes
    Summary Chieftec BX-10B-OP. Form factor: Tower, Type: PC, Product colour: Black. Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 204 mm, Depth: 415 mm, Height: 325 mm. Package weight: 5.48 kg
    Supported HDD sizes 2.5/3.5
    Supported motherboard form factors micro ATX/Mini-ITX
    Sustainability compliance Yes
    Tempered glass panel(s) Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/648fa6d2-8f29-43ea-b361-e78e9910c59f.Jpeg
    Top fans diameters supported 120/140
    Top radiator sizes supported 240
    Type PC
    Unit Calculated Volume 0.04838
    Unit Calculated Weight 5
    Units per Shipping Box 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    Vendor Homepage https://www.chieftec.eu/products-detail/538/BX-10B-OP
    Warranty period 2
    Weight 4780
    Width 204
