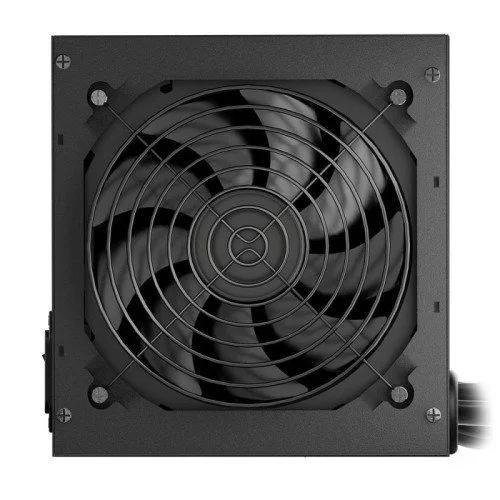

CASE PSU ATX 650W SYNERGY 650/PSAT1065A20CSCZ01B NJOY

Technical Specifications

• Description:

  SYNERGY SERIES
  IN SYNERGY WITH POWER
  Synergy Series is our line designed for system integration in PC structures that provides reliability and high-quality components for a substantial cost-effective product. With the updated design and features Synergy meets every test for the 80+ White 230V EU standard, having features as DC-to-DC, PFC Active, Hydraulic Bearing Fan, Flat Cables for a better management in the case, this will establish that the power supplies are built with a higher standard in mind.

  Efficiency at 80+ 230V EU White tier
  Synergy meets the 80+ White 230V EU standard, and ensures efficiency of 82%, 85%, and 82% with performance at 20%, 50%, and 100% loads. This testing establishes that these power supplies are built for better stability and support for IT projects.

  DC-to-DC Technology
  By using DC-DC converters, the PSU can deliver various output voltages with high efficiency and accuracy. With DC-to-DC technology, the +3.3V and +5V outputs can be easily obtained for maximum stability.

  Hydraulic bearing fan
  Hydraulic bearings use a thin layer of oil to create a lubricated film between the rotating shaft and the bearing. This design reduces friction, which results in quieter operation and longer lifespan compared to traditional sleeve bearings.

  Optimal Shielding
  Nothing can go wrong when the power supply is decked with protection systems that will save your most valued components from unfortunate events. Synergy provides OVP / UVP / SCP / OPP in accordance with international standards.

  Flat cords connecting to power
  Synergy series comes equipped with black, flattened long cables that will make for improved wire management and the chassis interior will remain clutter-free for a superior level of ventilation.

  • Meets 80+ White 230V EU Standard
  • DC to DC Technology
  • Active PFC

• Summary: nJoy Synergy 650. Total power: 650 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE, RoHS
• Vendor Homepage: https://www.njoy.global/product/synergy-650/PSAT1065A20CSCZ01B
• Name: CASE PSU ATX 650W SYNERGY 650/PSAT1065A20CSCZ01B NJOY
• Category Code: PSU
• Total power: 650
• AC input voltage: 230
• AC input frequency: 50
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 110
• Combined power (+12V): 576
• Combined power (+5V): 110
• Combined power (-12V): 6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 23
• Max output current (+12V): 48
• Max output current (+5V): 17
• Max output current (-12V): 0.5
• Max output current (+5Vsb): 2.5
• Efficiency: 82
• Power protection features: Over power/Over voltage/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 500
• Number of SATA power connectors: 5
• SATA power cable length: 150/450
• Peripheral (Molex) power connectors (4-pin): 3
• Peripheral (Molex) power cable length: 150/450
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 600
• Number of EPS connectors: 2
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS White
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Bearing technology: Hydraulic
• Product colour: Black
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Fan location: Top
• Certification: CE, RoHS
• Width: 145
• Depth: 150
• Height: 86
• Weight: 1529
• Master (outer) case width: 533
• Master (outer) case length: 538
• Master (outer) case height: 195
• Master (outer) case gross weight: 16860
• Master (outer) case net weight: 16000
• Products per master (outer) case: 10
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00297
• Unit Calculated Weight: 1.686
