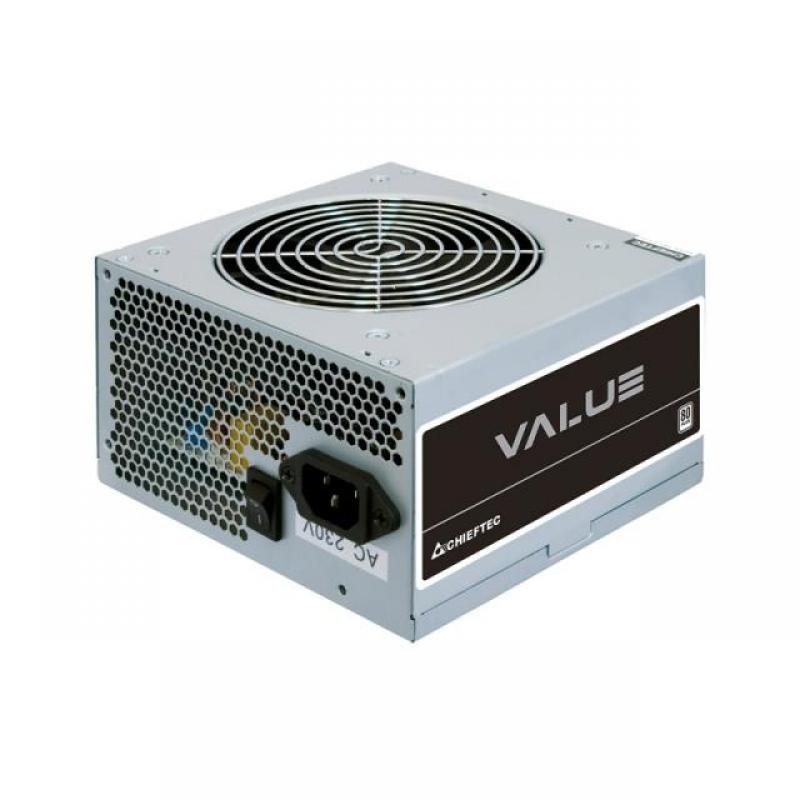

CASE PSU ATX 700W/APB-700B8 CHIEFTEC

CASE PSU ATX 700W/APB-700B8 CHIEFTEC
CASE PSU ATX 700W/APB-700B8 CHIEFTEC
  • Total power: 700
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    3,990ден.
    • Достапност: Има залиха
    • Бренд: CHIEFTEC
    • Шифра: 411001
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Certification: CE, CB, EAC, TÃœV
    • Vendor Homepage: https://www.chieftec.eu/products-detail/181/VALUE_SERIES/527/APB-700B8
    • Name: CASE PSU ATX 700W/APB-700B8 CHIEFTEC
    • Category Code: PSU
    • Total power: 700
    • AC input voltage: 200 - 240
    • AC input frequency: 47 - 63
    • Input current: 5
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 130
    • Combined power (+12V): 648
    • Combined power (+5V): 130
    • Max output current (+3.3V): 22
    • Max output current (+12V1): 54
    • Max output current (+5V): 22
    • Power protection features: Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 550
    • Number of SATA power connectors: 4
    • SATA power cable length: 150/550
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/500
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 2
    • PCI Express power cable length: 500
    • CPU power connector (4+4 pin): Yes
    • CPU power cable length: 500
    • Floppy disk drive connector: Yes
    • Floppy drive power connector: 1
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Silver
    • Cooling type: Active
    • Fan diameter: 120
    • Number of fans: 1
    • Compliance certificates: CE
    • Certification: CE, CB, EAC, TÃœV
    • Width: 150
    • Depth: 140
    • Height: 87
    • Weight: 1420
    • Package weight: 1570
    • Sustainability compliance: Yes
    • Harmonized System (HS) code: 84733020
    • Model name: APB-700B8
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.003312
    • Unit Calculated Weight: 1.5
    Specs
    80 PLUS certification 80 PLUS
    AC input frequency 47 - 63
    AC input voltage 200 - 240
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Certification CE, CB, EAC, TÃœV
    Combined power (+12V) 648
    Combined power (+3.3V) 130
    Combined power (+5V) 130
    Compliance certificates CE
    Cooling type Active
    CPU power cable length 500
    CPU power connector (4+4 pin) Yes
    Depth 140
    Description

    The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Floppy disk drive connector Yes
    Floppy drive power connector 1
    Harmonized System (HS) code 84733020
    Height 87
    Input current 5
    Max output current (+12V1) 54
    Max output current (+3.3V) 22
    Max output current (+5V) 22
    Model name APB-700B8
    Motherboard power cable length 550
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 700W/APB-700B8 CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 4
    Package weight 1570
    PCI Express power cable length 500
    PCI Express power connectors (6+2 pin) 2
    Peripheral (Molex) power cable length 150/500
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/f5be05b3-623a-406f-a9e7-5deca02e7829.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage
    Power supply unit (PSU) form factor ATX
    Product colour Silver
    Purpose PC/Server
    SATA power cable length 150/550
    Summary Chieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Certification: CE, CB, EAC, TÃœV
    Sustainability compliance Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/f5be05b3-623a-406f-a9e7-5deca02e7829.Jpeg
    Total power 700
    Unit Calculated Volume 0.003312
    Unit Calculated Weight 1.5
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/181/VALUE_SERIES/527/APB-700B8
    Weight 1420
    Width 150
