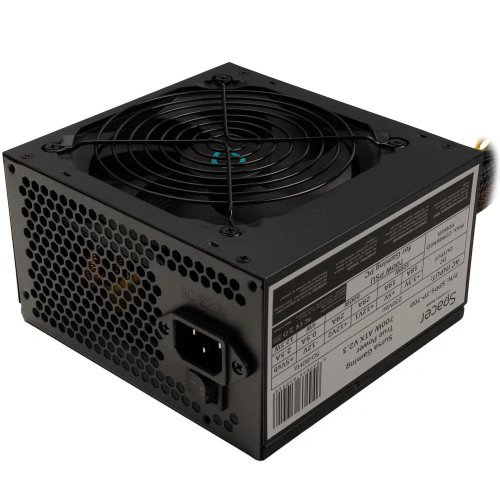

CASE PSU ATX 700W/SPPS-TP-700 SPACER

Technical Specifications

• Summary: SPACER SPPS-TP-700. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm. Warranty period: 2 year(s)
• Vendor Homepage: https://spacer.ro/produs/sursa-spacer-spps-tp-700/
• Name: CASE PSU ATX 700W/SPPS-TP-700 SPACER
• Category Code: PSU
• Total power: 700
• AC input voltage: 230
• AC input frequency: 50/60
• Combined power (+3.3V): 100
• Combined power (+5V): 100
• Combined power (-12V): 6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 18
• Max output current (+12V1): 29
• Max output current (+12V2): 29
• Max output current (+5V): 19
• Max output current (-12V): 0.5
• Max output current (+5Vsb): 2.5
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 5
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• ATX power connector (20+4 pin): Yes
• PCI Express connector: Yes
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Product colour: Black
• Fan diameter: 120
• Warranty period: 2
• Unit Calculated Volume: 0.00425
• Unit Calculated Weight: 1.5
