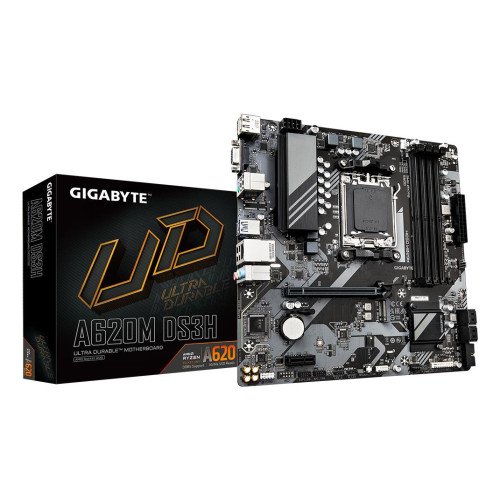

MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE

Technical Specifications

• Summary: GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
• Vendor Homepage: https://www.gigabyte.com
• Name: MB AMD A620 SAM5 MATX/A620M DS3H 2.0 GIGABYTE
• Category Code: MBA
• Motherboard chipset: AMD A620
• Product colour: Brown
• PC health monitoring: Fan/Temperature/Voltage/Water cooling
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series
• Supported processor sockets: Socket AM5
• Maximum internal memory supported by processor: 192
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4800/5200/5600/6000/6200/6400/6800/7000/7200/7600
• Supported memory clock speed (max): 7600
• Maximum internal memory: 192
• Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 1
• Number of storage drives supported: 4
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2160
• HDCP: Yes
• DirectX version: 12.0
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 3
• Microphone in: Yes
• USB connector type: USB Type-A/USB Type-C
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• PCI Express x1 slots: 1
• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 256
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 265
• Number of battery cells: 1
• Package depth: 265
• Package height: 54
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 1067
• Battery type: CR2032
• Width: 244
• Depth: 244
• Height: 35
• Batteries included: Yes
• Cables included: SATA
• Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
• Warranty period: 3
• Units per Pallet: 0
• Units per Shipping Box: 10
• Unit Calculated Volume: 0.00471
• Unit Calculated Weight: 1.02
