52123-03-40G

Technical Specifications

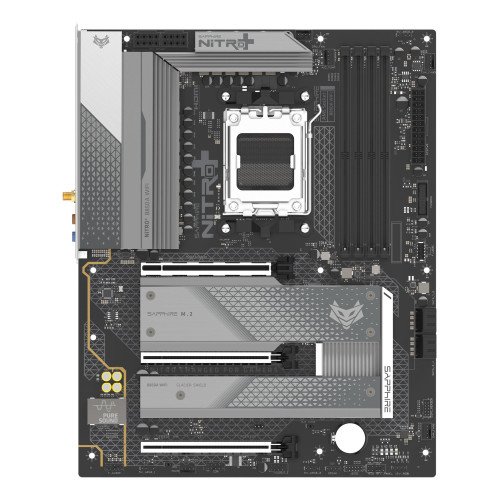

• Summary: Sapphire NITRO+ B850A WIFI 7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://www.sapphiretech.com/en/consumer/mb_nitro_b850a-wifi7
• Name: MB AMD B850 SAM5 ATX/NITRO+ 52123-03-40G SAPPHIRE
• Category Code: MBA
• Model: 52123-03-40G
• Motherboard chipset: AMD B850
• Audio chip: Realtek ALC897
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported processor sockets: Socket AM5
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speed (max): 8000
• Maximum internal memory: 256
• Maximum internal memory per slot: 48
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0,SATA III
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• Number of water pump connectors: 1
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• Headphone outputs: 3
• Microphone in: Yes
• Subwoofer out: Yes
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.3
• PCI Express x4 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Width: 305
• Depth: 245
• Back-to-BIOS button: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00609
• Unit Calculated Weight: 2
