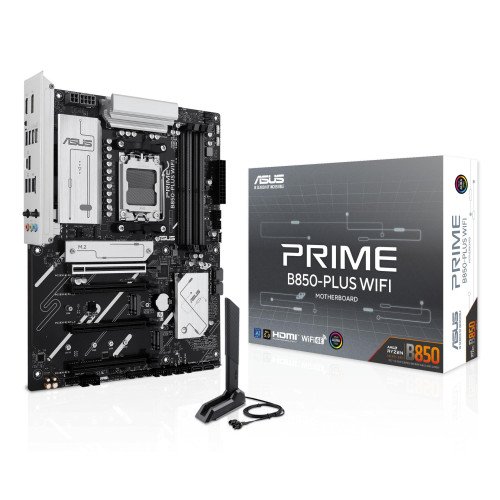

PRIME B850-PLUS WIFI

PRIME B850-PLUS WIFI
Нема на залиха
PRIME B850-PLUS WIFI
  • Motherboard chipset: AMD B850
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 7
    • Врз основа на 0 коментари. - Напиши коментар
    13,164ден.
    • Достапност: Нема на залиха
    • Бренд: ASUS
    • Шифра: 434959
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS PRIME B850-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b850-plus-wifi/
    • Name: MB AMD B850 SAM5 ATX/PRIME B850-PLUS WIFI ASUS
    • Category Code: MBA
    • Model: PRIME B850-PLUS WIFI
    • Motherboard chipset: AMD B850
    • Product colour: Multicolour
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 10 x64/Windows 11
    • Compatible operating systems: Windows 11, Windows 10 64-bit
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speed (max): 8000
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 7
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 3
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • Number of SATA III connectors: 4
    • S/PDIF out connector: Yes
    • Front panel audio connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 4
    • Chassis intrusion connector: Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of COM connectors: 1
    • Thunderbolt headers: 1
    • TPM connector: Yes
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • HDMI ports quantity: 1
    • DisplayPorts quantity: 1
    • Microphone in: Yes
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    • Bluetooth: Yes
    • Bluetooth version: 5.3
    • PCI Express x16 (Gen 3.x) slots: 2
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 3
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • Package width: 353
    • Package depth: 68
    • Package height: 273
    • Package weight: 1260
    • Width: 305
    • Depth: 244
    • Height: 48
    • Weight: 1050
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.007056
    • Unit Calculated Weight: 1.7
    Specs
    12V power connector Yes
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.3
    Category Code MBA
    Chassis intrusion connector Yes
    Compatible operating systems Windows 11, Windows 10 64-bit
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    PRIME 850-PLUS WIFI
    ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
    * CEC Tier II ready
    DisplayPorts quantity 1
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    HDMI ports quantity 1
    Height 48
    Maximum internal memory 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model PRIME B850-PLUS WIFI
    Motherboard chipset AMD B850
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD B850 SAM5 ATX/PRIME B850-PLUS WIFI ASUS
    Number of chassis fan connectors 4
    Number of COM connectors 1
    Number of CPU fan connectors 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 3
    Number of memory slots 4
    Number of SATA III connectors 4
    Number of storage drives supported 7
    Package depth 68
    Package height 273
    Package weight 1260
    Package width 353
    Parallel processing technology support Not supported
    PCI Express x16 (Gen 3.x) slots 2
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/89387610-d90f-46d8-bd35-0e008bd2db10.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Multicolour
    RAID levels 0/1/10/5
    RAID support Yes
    S/PDIF out connector Yes
    Summary ASUS PRIME B850-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    Supported memory clock speed (max) 8000
    Supported memory types DDR5-SDRAM
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/89387610-d90f-46d8-bd35-0e008bd2db10.Jpeg
    Thunderbolt headers 1
    Top Wi-Fi standard Wi-Fi 6E (802.11ax)
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.007056
    Unit Calculated Weight 1.7
    Units per Shipping Box 1
    USB 2.0 connectors 3
    USB 2.0 ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    Vendor Homepage https://www.asus.com/motherboards-components/motherboards/prime/prime-b850-plus-wifi/
    Weight 1050
    Wi-Fi Yes
    Width 305
    Windows operating systems supported Windows 10 x64/Windows 11
