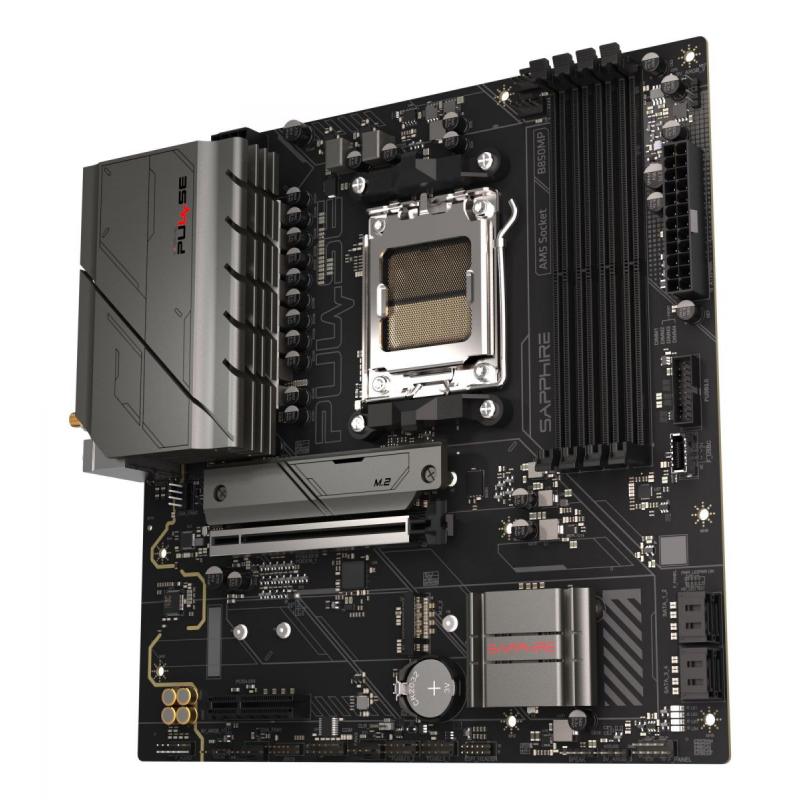

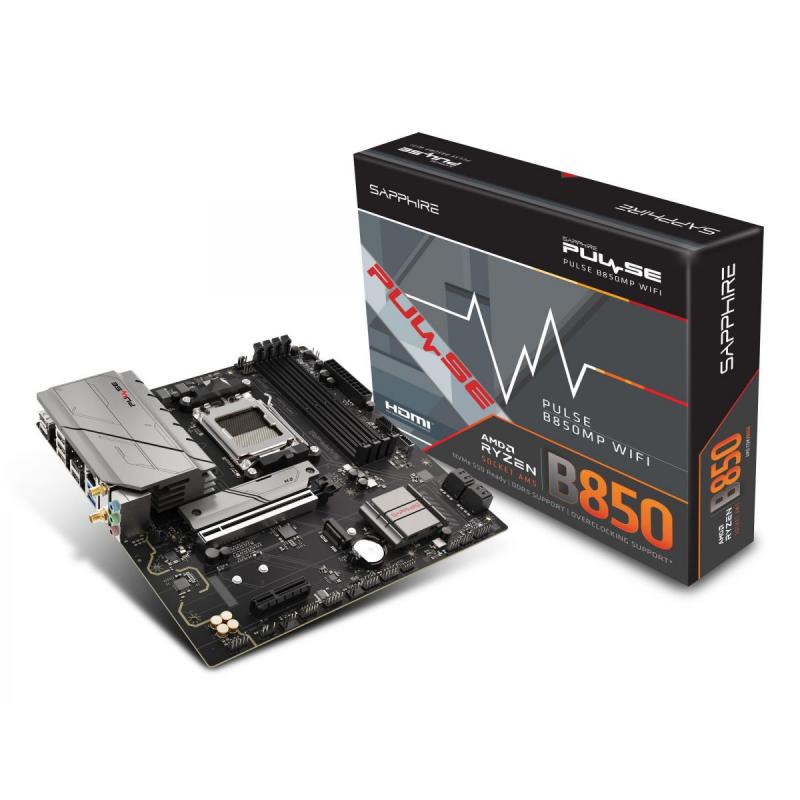

MB AMD B850 SAM5 MATX/PULSE 52123-04-40G SAPPHIRE
9,624ден.
- Достапност: Има надворешна залиха
- Бренд: SAPPHIRE
- Шифра: 449120
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| Unit Depth | 28 |
| Unit Height | 28 |
| Unit Width | 6.5 |
| Specs | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 5.1 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Category Code | MBA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 235 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 3 |
| LAN controller | Dragon RTL8125BG |
| Line-in | Yes |
| Maximum internal memory | 192 |
| Maximum internal memory per slot | 48 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model | 52123-04-40G |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Name | MB AMD B850 SAM5 MATX/PULSE 52123-04-40G SAPPHIRE |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Number of water pump connectors | 1 |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| Product Net Weight | 1 |
| Product type | Office |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Shipping Box Depth | 28 |
| Shipping Box Height | 28 |
| Shipping Box Weight | 1.6000000238 |
| Shipping Box Width | 6.5 |
| Summary | Sapphire PULSE B850M WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax) |
| Supported memory clock speed (max) | 7600 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | PCI Express 4.0,PCI Express 5.0,SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Unit Calculated Volume | 0.005096 |
| Unit Calculated Weight | 1.6 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| Vendor Homepage | https://www.sapphiretech.com/en/consumer/mb_pulse_b850m |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| Width | 244 |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
