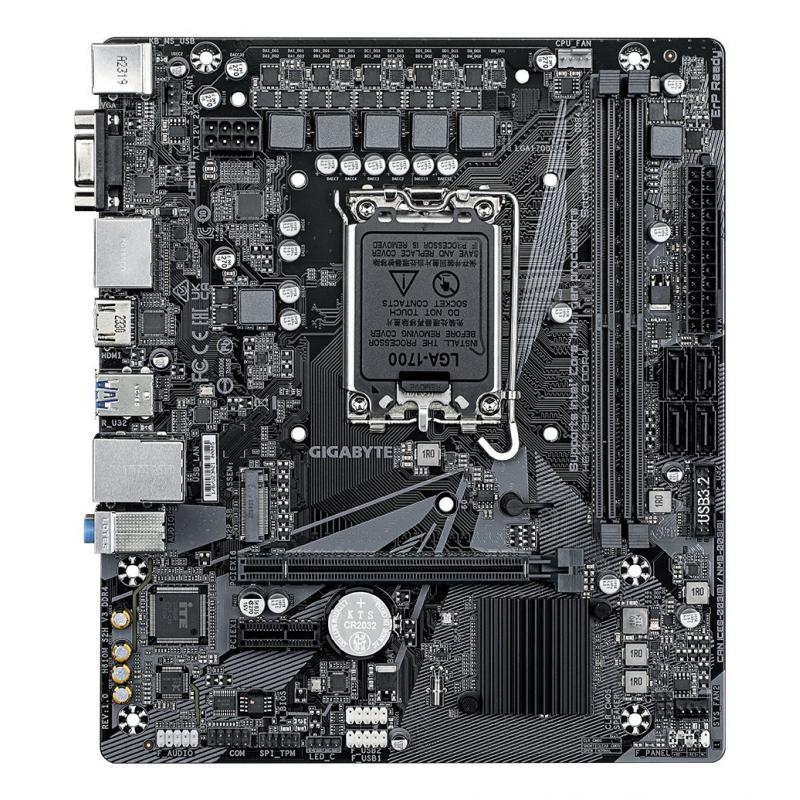

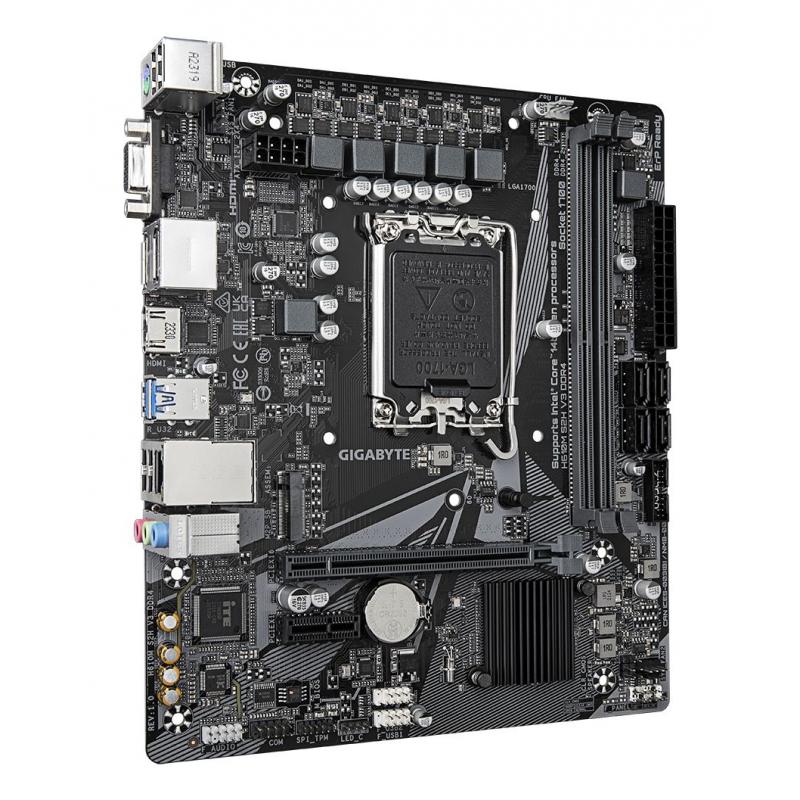

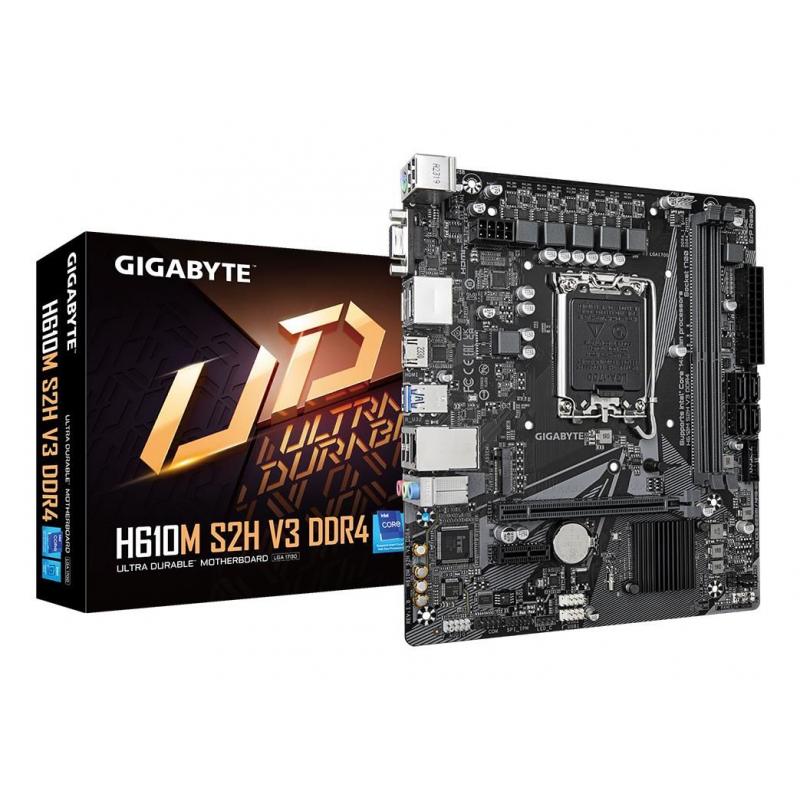

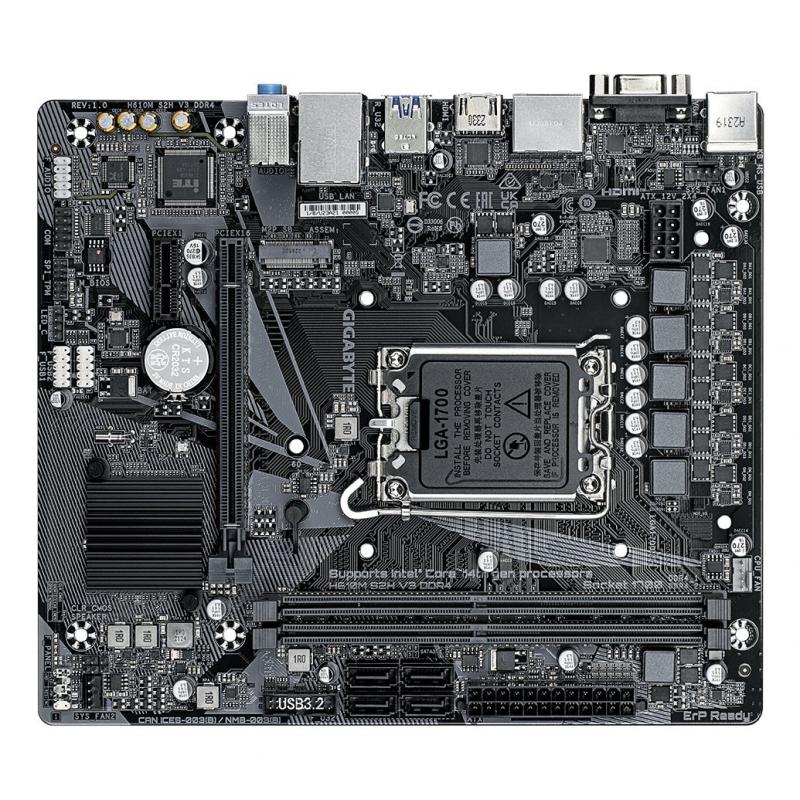

H610M S2H V3 DDR4

Technical Specifications

• Summary: GIGABYTE H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3, Intel Core i5, Intel Core i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
• Vendor Homepage: https://www.gigabyte.com/
• Name: MB H610 S1700 MATX/H610M S2H V3 DDR4 GIGABYTE
• Category Code: MBI
• Model: H610M S2H V3 DDR4
• Motherboard chipset: Intel H610 Express
• Product colour: Black
• PC health monitoring: Fan/Temperature/Voltage/Water cooling
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Cooling type: Active
• Motherboard chipset family: Intel
• Power source type: ATX
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Compatible processor series: Intel Core i3/Intel Core i5/Intel Core i7
• Supported processor sockets: LGA 1700
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 2133/2400/2666/2933/3000/3200
• Supported memory clock speed (max): 3200
• Maximum internal memory: 64
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 5
• Parallel processing technology support: Not supported
• Maximum resolution: 4096 x 2304
• HDCP: Yes
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• 12V power connector: Yes
• Serial port headers: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 1
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.2
• Line-in: Yes
• Microphone in: Yes
• USB connector type: USB Type-A
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 1
• 1st M.2 largest key size: 2280
• 1st M.2 highest PCI Express generation: 3.0
• BIOS type: UEFI AMI
• BIOS memory size: 128
• ACPI version: 5.0
• Clear CMOS jumper: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Country of origin: China
• Products per shipping (inner) case: 1
• Battery weight: 3
• Lithium weight per battery: 0.07
• Package width: 265
• Number of battery cells: 1
• Package depth: 235
• Package height: 52
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Package weight: 774
• Battery type: CR2032
• Width: 223
• Depth: 193
• Height: 35
• Batteries included: Yes
• Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
• Warranty period: 3
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00351
• Unit Calculated Weight: 0.5
