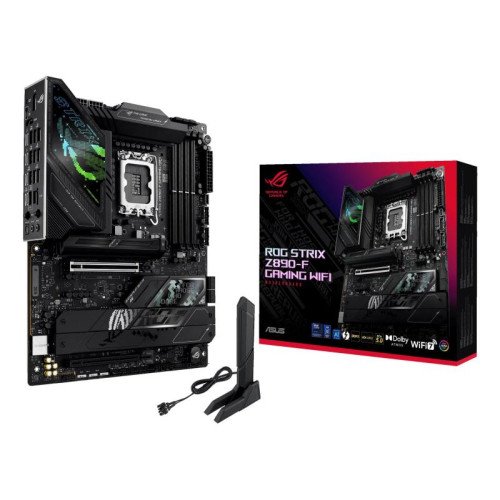

ROG STRIX Z890-F GAMING WIFI

Technical Specifications

• Summary: ASUS ROG STRIX Z890-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/
• Name: MB Z890 S1851 ATX/ROG STRIX Z890-F GAM WIFI ASUS
• Category Code: MBI
• Model: ROG STRIX Z890-F GAMING WIFI
• Motherboard chipset: Intel Z890
• Audio chip: Realtek ALC4080
• Product colour: Black
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 11
• Processor manufacturer: Intel
• Processor socket: LGA 1851 (Socket V1)
• Compatible processor series: Intel Core Ultra (Series 2)
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speed (max): 8600
• Maximum internal memory: 192
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 9
• RAID support: Yes
• RAID levels: 0/1/5
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2x2 connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 5
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• Thunderbolt headers: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• Microphone in: Yes
• S/PDIF out port: Yes
• Thunderbolt ports quantity: 2
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 5
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Yes
• Package width: 353
• Package depth: 273
• Package height: 68
• Package weight: 1980
• Width: 305
• Depth: 244
• Units per Shipping Box: 4
• Unit Calculated Volume: 0.008186
• Unit Calculated Weight: 2.6
