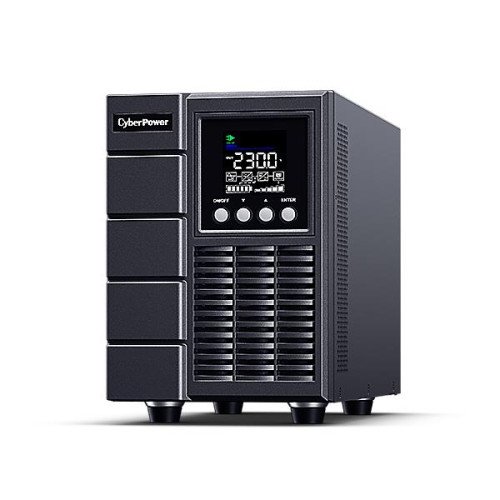

UPS TOWER 1500VA LCD IEC-SHUKO/OLS1500EA CYBERPOWER

Technical Specifications

• Summary: CyberPower OLS1500EA. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: IEC 320, Power plug: C13 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5.3 min, Typical backup time at half load: 15.3 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Compliance certificates: CE, Certification: RoHS
• Vendor Homepage: https://www.cyberpower.com/de/en/product/sku/ols1500ea#specification
• Name: UPS TOWER 1500VA LCD IEC-SHUKO/OLS1500EA CYBERPOWER
• Category Code: UPW
• Model: OLS1500EA
• UPS topology: Double-conversion (Online)
• Output power capacity: 1.5
• Output power: 1350
• Waveform: Pure sine
• Input operation voltage (min): 190
• Input operation voltage (max): 300
• Input frequency: 50/60
• Output operation voltage (min): 208
• Output operation voltage (max): 240
• Output frequency: 50/60
• Maximum current: 9
• Surge energy rating: 345
• Response time: 0
• Efficiency (ECO mode): 95
• Power factor: 0.9
• Input power factor: 0.98
• Output voltage Total Harmonic Distortion (THD): 5
• EMI/RFI noise filtering: Yes
• Surge protection: Yes
• Power protection features: Overload
• Audible alarm(s): Yes
• Audible alarm modes: Battery replacement,Fault,Low battery alarm,Overload alarm
• AC outlet types: IEC 320
• Power plug: C13 coupler
• AC outlets quantity: 4
• Number of output IEC jumpers: 2
• USB port: Yes
• USB 2.0 ports quantity: 1
• Emergency Power Off (EPO) connector: Yes
• Battery technology: Sealed Lead Acid (VRLA)
• Typical backup time at full load: 5.3
• Typical backup time at half load: 15.3
• Battery recharge time: 4
• Charging current: 1.5
• Form factor: Tower
• Housing material: Metal
• Cable length: 1.5
• Product colour: Black
• Display type: LCD
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 50
• Operating relative humidity (H-H): 20 - 90
• Storage relative humidity (H-H): 10 - 90
• Operating altitude: 0 - 1500
• Non-operating altitude: 0 - 1500
• Cables included: USB cable
• Manual: Yes
• Compliance certificates: CE
• Certification: RoHS
• Width: 151
• Depth: 394
• Height: 225
• Weight: 14400
• Package width: 241
• Package depth: 510
• Package height: 313
• Package weight: 16200
• Harmonized System (HS) code: 8504408590
• Country of origin: China
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03794
• Unit Calculated Weight: 18
