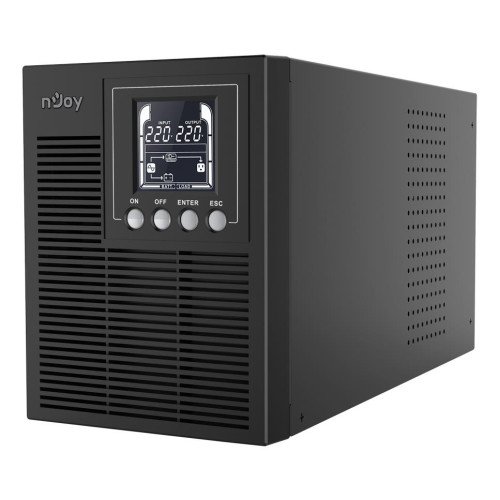

UPS TOWER ECHO PRO 1000 1KVA/UPOL-OL100EP-CG01B NJOY

Technical Specifications

• Summary: nJoy Echo Pro 1000. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: Type F, AC outlets quantity: 3 AC outlet(s), USB port type: USB Type-B. Typical backup time at full load: 1 min, Typical backup time at half load: 6 min, Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, RoHS
• Vendor Homepage: https://www.njoy.global/product/echo-pro-1000/UPOL-OL100EP-CG01B
• Name: UPS TOWER ECHO PRO 1000 1KVA/UPOL-OL100EP-CG01B NJOY
• Category Code: UPW
• Model: Echo Pro 1000
• UPS topology: Double-conversion (Online)
• Output power capacity: 1
• Output power: 800
• Waveform: Pure sine
• Input operation voltage (min): 80
• Input operation voltage (max): 300
• Input frequency: 50/60
• Output operation voltage (min): 208
• Output operation voltage (max): 240
• Output frequency: 50/60
• Surge energy rating: 220
• Response time: 4
• Number of input phases: 1
• Number of output phases: 1
• Efficiency: 85
• Efficiency (On-line mode): 88
• Efficiency (ECO mode): 96
• Output power factor: 0.8
• Crest factor: 3:1
• Emergency Power Off (EPO): Yes
• Total Harmonic Distortion (THD) (linear load): 3
• Total Harmonic Distortion (THD) (non-linear load): 5
• Noise level: 40
• Surge protection: Yes
• Auto-restart: Yes
• AC outlet types: Type F
• AC outlets quantity: 3
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB port type: USB Type-B
• Serial interface: Yes
• Serial interface type: RS-232
• RS-232 ports: 1
• Number of batteries supported: 2
• Typical backup time at full load: 1
• Typical backup time at half load: 6
• Battery recharge time: 4
• Replacement battery cartridge: GP07122L
• Form factor: Tower
• Cooling type: Active
• Built-in fan: Yes
• Product colour: Black
• Control type: Buttons
• Display type: LCD
• LED indicators: Yes
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 0 - 90
• Batteries included: Yes
• Compliance certificates: CE/RoHS
• Sustainability compliance: Yes
• Width: 140
• Depth: 327
• Height: 190
• Weight: 9130
• Package width: 440
• Package depth: 217
• Package height: 277
• Package weight: 10100
• Package type: Box
• Master (outer) case net weight: 9130
• Master (outer) case width: 217
• Master (outer) case length: 440
• Master (outer) case height: 277
• Master (outer) case gross weight: 10100
• Products per master (outer) case: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02554
• Unit Calculated Weight: 10
