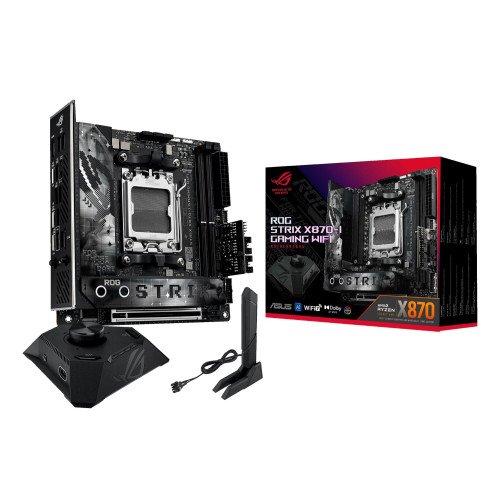

ROG STRIX X870-I GAMING WIFI

Technical Specifications

• Summary: ASUS ROG STRIX X870-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)
• Vendor Homepage: https://rog.asus.com/motherboards/rog-strix/rog-strix-x870-i-gaming-wifi/
• Name: MB AMD X870 SAM5 MITX/ROG STRIX X870-I GAM WIFI ASUS
• Category Code: MBA
• Model: ROG STRIX X870-I GAMING WIFI
• Motherboard chipset: AMD X870
• Product colour: Black
• Component for: PC
• Motherboard form factor: mini ITX
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speed (max): 8600
• Maximum internal memory: 96
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of HDDs supported: 2
• Number of storage drives supported: 4
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 2
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 1
• EPS power connector (8-pin): Yes
• 12V power connector: Yes
• USB 2.0 ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB4 Gen 3x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• USB connector type: USB Type-A/USB Type-C
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Yes
• Width: 170
• Depth: 170
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.008492
• Unit Calculated Weight: 1.96
