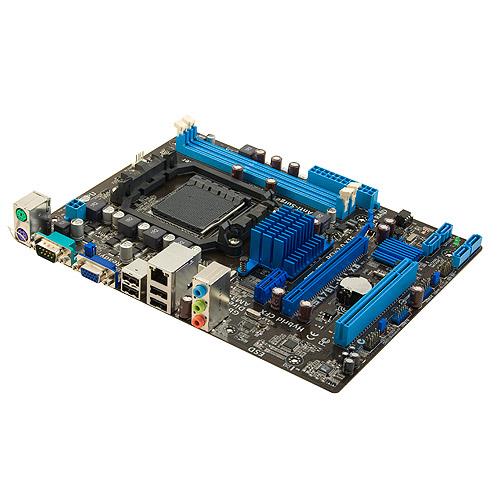

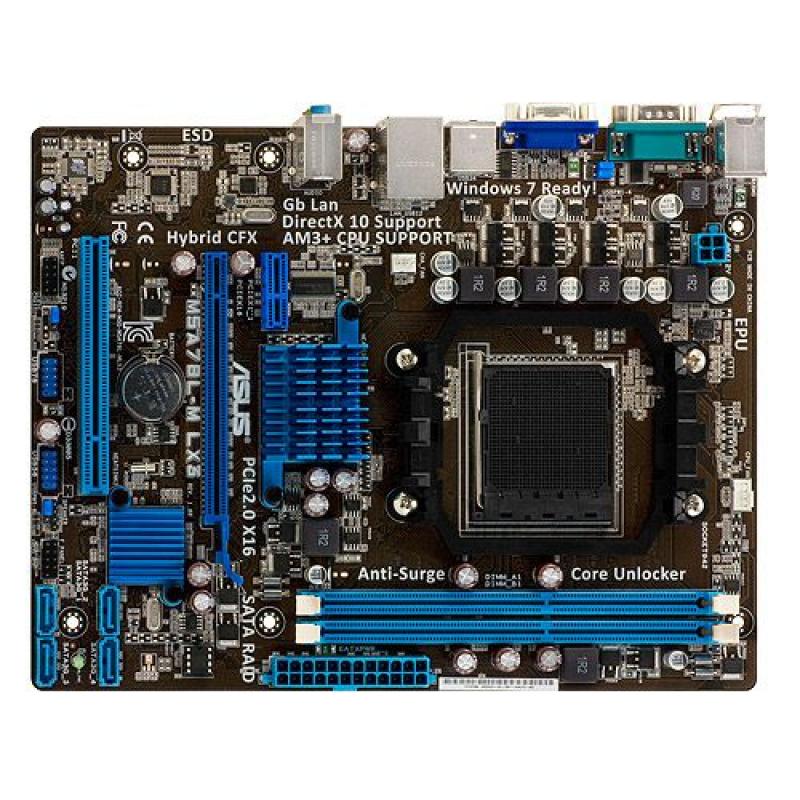

MB AMD 760G/SB710 SAM3+ MATX/M5A78L-M LX3 ASUS

Technical Specifications

• Summary: ASUS M5A78L-M LX3. Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Phenom. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, SATA II, RAID levels: 0, 1, 10, JBOD. Parallel processing technology support: Hybrid CrossFireX, Maximum graphics card memory: 1024 MB, Graphics card family: ATI. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet
• Vendor Homepage: https://www.asus.com/Motherboards/AMD_AM3Plus/M5A78LM_LX3/
• Name: MB AMD 760G/SB710 SAM3+ MATX/M5A78L-M LX3 ASUS
• Category Code: MBA
• Motherboard chipset: AMD 760G
• Motherboard southbridge: AMD SB710
• Audio chip: Realtek ALC887
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Power source type: ATX
• Processor manufacturer: AMD
• Processor socket: Socket AM3+
• Compatible processor series: AMD Phenom
• Processor thermal power (max): 95
• Supported memory types: DDR3-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 1066/1333/1600/1866
• Maximum internal memory: 16
• Unbuffered memory: Yes
• Supported storage drive interfaces: SATA,SATA II
• RAID levels: 0/1/10/JBOD
• Maximum graphics card memory: 1024
• Parallel processing technology support: Hybrid CrossFireX
• On-board graphics card: Yes
• Graphics card family: ATI
• Graphics card: Radeon HD 3000
• Maximum resolution: 2560 x 1440
• DirectX version: 10
• USB 2.0 connectors: 2
• Number of SATA II connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• Number of EATX power connectors: 1
• CPU fan connector: Yes
• Chassis intrusion connector: Yes
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 2
• VGA (D-Sub) ports quantity: 1
• Headphone outputs: 1
• Microphone in: Yes
• COM ports quantity: 1
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking features: Gigabit Ethernet
• PCI Express x1 slots: 1
• PCI Express x16 slots: 1
• PCI Express slots version: 2.0
• PCI slots: 1
• BIOS type: AMI
• BIOS memory size: 16
• ACPI version: 2.0a
• Width: 244
• Depth: 188
• Cables included: SATA
• Drivers included: Yes
• Controller interface type: AMD SB710
• PCI Express slots quantity: 2
• Units per Shipping Box: 10
• Unit Calculated Volume: 0.004959
• Unit Calculated Weight: 0.97
