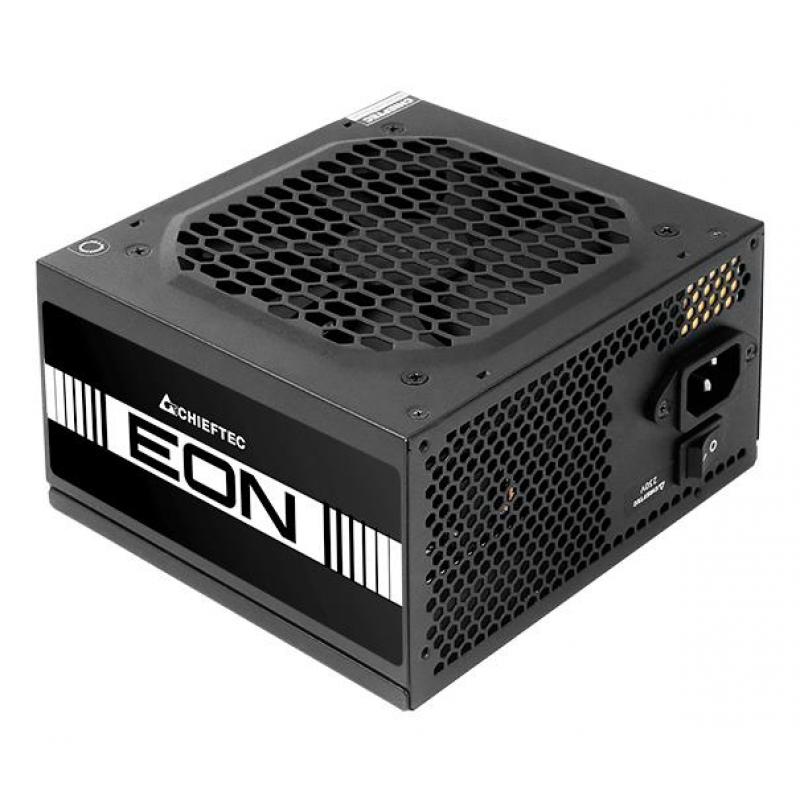

CASE PSU ATX 400W/ZPU-400S CHIEFTEC

CASE PSU ATX 400W/ZPU-400S CHIEFTEC
Нема на залиха
CASE PSU ATX 400W/ZPU-400S CHIEFTEC
  • Total power: 400
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
    • Врз основа на 0 коментари. - Напиши коментар
    2,862ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 419490
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec EON ZPU-400S. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,600 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
    • Vendor Homepage: https://www.chieftec.eu/products-detail/566/EON_Series
    • Name: CASE PSU ATX 400W/ZPU-400S CHIEFTEC
    • Category Code: PSU
    • Total power: 400
    • AC input voltage: 200 - 240
    • AC input frequency: 50
    • Input current: 3
    • Maximum input current (@220V): 3
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (-12V): 4.8
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 20
    • Max output current (+12V1): 30
    • Max output current (+5V): 20
    • Max output current (-12V): 0.4
    • Max output current (+5Vsb): 2.5
    • Power protection features: Short circuit/Surge and inrush/Surge protection
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 550
    • Number of SATA power connectors: 4
    • SATA power cable length: 550/600
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/450
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 1
    • CPU power connector (4+4 pin): Yes
    • ATX power connector (20+4 pin): Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Supported motherboard form factors: ATX
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Black
    • Fan diameter: 120
    • On/off switch: Yes
    • Compliance certificates: CB/CE/EAC/RoHS
    • Width: 150
    • Depth: 140
    • Height: 86
    • Weight: 1150
    • Package weight: 1400
    • Package type: Box
    • Sustainability certificates: ErP
    • Warranty period: 2
    • Model name: ZPU-400S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.0045
    • Unit Calculated Weight: 1.2
    Specs
    80 PLUS certification 80 PLUS
    AC input frequency 50
    AC input voltage 200 - 240
    ATX power connector (20+4 pin) Yes
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Combined power (+5Vsb) 12.5
    Combined power (-12V) 4.8
    Compliance certificates CB/CE/EAC/RoHS
    CPU power connector (4+4 pin) Yes
    Depth 140
    Description

    EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.

    The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.

    The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Height 86
    Input current 3
    Max output current (+12V1) 30
    Max output current (+3.3V) 20
    Max output current (+5V) 20
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.4
    Maximum input current (@220V) 3
    Model name ZPU-400S
    Motherboard power cable length 550
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 400W/ZPU-400S CHIEFTEC
    Number of SATA power connectors 4
    On/off switch Yes
    Package type Box
    Package weight 1400
    PCI Express power connectors (6+2 pin) 1
    Peripheral (Molex) power cable length 150/450
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/48a06c15-e79a-4512-a10c-5ae941fc069d.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Short circuit/Surge and inrush/Surge protection
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC/Server
    SATA power cable length 550/600
    Summary Chieftec EON ZPU-400S. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,600 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
    Supported motherboard form factors ATX
    Sustainability certificates ErP
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/48a06c15-e79a-4512-a10c-5ae941fc069d.Jpeg
    Total power 400
    Unit Calculated Volume 0.0045
    Unit Calculated Weight 1.2
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/566/EON_Series
    Warranty period 2
    Weight 1150
    Width 150
